Model No: DYP-H03

Small Blind Zone Ultrasonic Range Finder DYP-H03

The H03 module is a high-performance, high-reliability commercial-grade functional module specially developed for height measurement.

Delivery :

EXW

minimum order :

10 units

Supply Ability :

10000units / Month

Stock Time :

7-10Day

Country of Origin :

Guangdong, China

Quantity :

Contact Now

Small Blind Zone Ultrasonic Range Finder

Module : DYP-H03

DYP-H03 is a height measurement sensor module that uses ultrasonic sensing technology for ultrasonic distance measurement. The module adopts high-performance processor and high-quality components, the product is stable and reliable, and has a long service life. This height sensor module is a high-performance, high-reliability commercial-grade functional module specially developed and developed for customers' height measurement solutions. The stable distance of the module to measure the human head is 10~120cm.

Here comes the detailed specifications of DYP-H03 :

Parameter	PWM	Unit	Remarks
OperatingVoltage	3.3-5	V	DC
StaticCurrent	≤8	mA	/
OperatingCurrent	≤10	mA	/
BootTime	1	s	/
BlindSpotDistance	0~3	cm	/
FlatObjectMeasurementDistance	3~250	cm	/
OutputMethod	UART controlled output	-	-
ResponseTime	250	ms	-
MeasurementAccuracy	±(1cm+S×0.3%)	cm	/
TemperatureCompensation	No	-	/

Remarks:

(1) Typical data obtained from 500 ms working cycle test at 25 ℃, 65% RH, 5.0 V power supply (the lower the power supply, the smaller the power consumption).

(2) When the module is powered on, it has 1s stable time, and can not be triggered during this period.

(3) The temperature is 25 ℃, the humidity is 65% RH, the object is 50cm × 60cm flat carton, s is the measurement distance.

Rated Environmental Conditions

Item	Minimum	Typical value	Maximum	Unit
Storage temperature	-20	25	80	°C
Storage humidity		65%	90%	RH
operating temperature	-10	25	50	°C
Operating humidity		65%	80%	RH

Note:

(1) When the ambient temperature is 0~39°C, the maximum humidity is 90% (non-condensing).

(2) When the ambient temperature is 40~50°C, the highest humidity is the highest humidity (non-condensing) in nature at the current temperature.

Rated Electrical Condition

Parameter	Specification			Unit	Remarks
Parameter	Minimum	Typical value	Maximum	Unit	Remarks
Operating voltage	3.3	5	5.25	V	/
Peak current	/	/	100	mA	Peak to peak
Input ripple	/	/	50	mV	Peak to peak
Input noise	/	/	100	mV	Peak to peak
ESD	/	/	±200/±2K	V	/
ESD	/	/	±4K/±8K	V	/

Note:

(1) Assemble line body static electricity specification, contact static electricity should not be higher than ±200V, air static electricity should not be higher than ±2KV.

(2) The sensor shell and output lead comply with IEC61000-4-2 standard.

Product Features

DYP-H03ultrasonic sensor for height measurement boasts several notable features. It ensures high stability with a repeatability error of less than 5mm, enabling consistent measurements. The height measurement sensor has a small blind zone of 3cm for flat objects, allowing it to detect targets close by. It operates with low power consumption, with an average operating current of less than 10mA, making it energy-efficient. For precision, it offers high-accuracy detection: at room temperature, the error is within ±1cm plus 0.3% of the measured value (S). Equipped with an onboard temperature compensation function, it automatically corrects deviations, ensuring stable ranging from -10°C to +50°C. Its electrostatic protection design, with ESD devices on I/O pins, complies with the IEC61000-4-2 standard. Capable of millimeter-level distance detection, the height sensor functions reliably within an operating temperature range of -10°C to +50°C, making it suitable for robust height measurement applications.

For those specifically seeking an arduino ultrasonic range finder, this sensor combines the benefits of ultrasonic technology with Arduino's flexibility, enabling real-time data processing and responsive control.

In summary, DYP-H03 height measurement sensor stands out as a reliable ultrasonic range finder, a user-friendly arduino range finder, a high-performance arduino ultrasonic range finder.

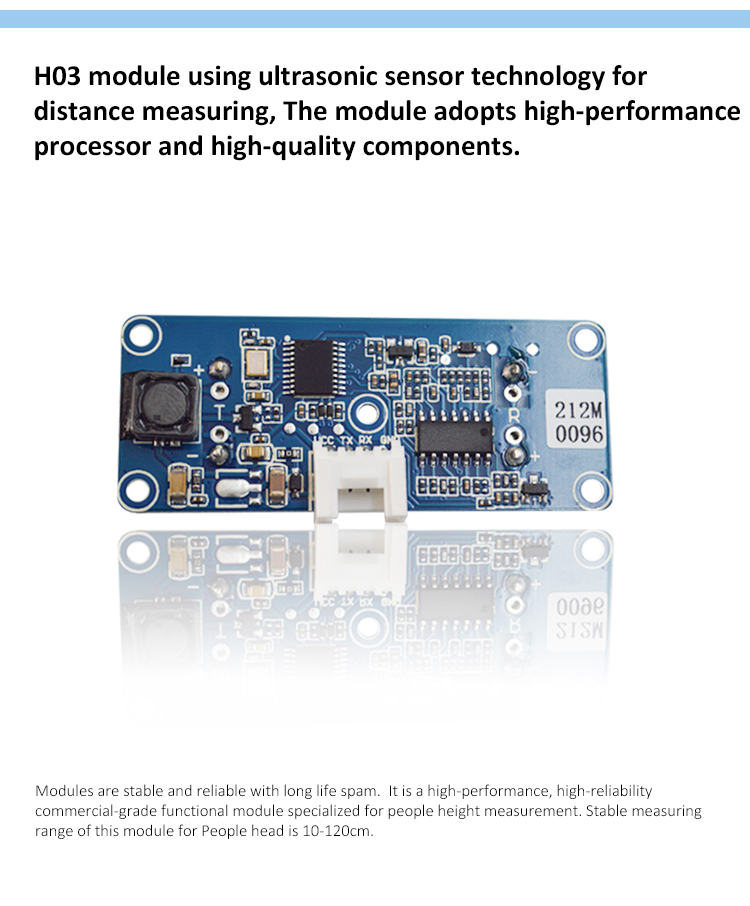

H03 module utilize ultrasonic sensor technology for distance measuring

H03 Ultrasonic Sensor Module-People Height

Scope of Application

Module DYP-A22 mainly used in Height Measurement and millimeter Distance Detection.

H03 ultrasonic sensor module designed for people height application

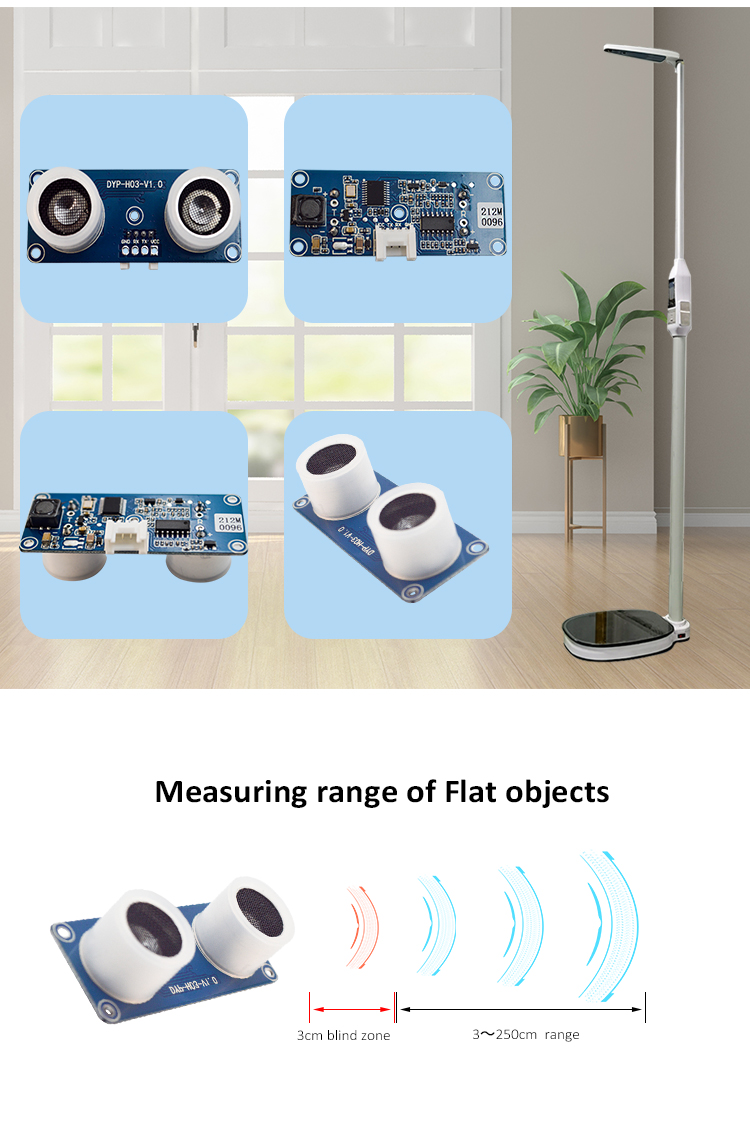

Physical pictures from four angles of module H03

Model Selection

The output format of this series of ranging modules is just 1 format. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.

No.	Output Interface	Model No.
H03 Series	UART CONTROLLED	DYP-H03TRT-V1.0

Reliability Test Conditions

Item	Test items	Experimental Condition	Samples
1	High temperature and humidity work	50°C，85%RH，Power ON@5V，72hrs	3
2	Low temperature work	-10°C，Power ON@5V，72hrs	3
3	High temperature and humidity storage	60°C，80%RH，storage，72hrs	3
4	Low temperature storage	-20°C，storage，72hrs	3
5	Vibration test	10-200Hz，15min，2.0G，XYZ 3 axes, each axis 0.5 hours	3
6	Drop test	0.5m free fall drop, 5 times at wooden floor	3

Remarks: After the test, the module is determined to be OK after the function test, and the performance degradation rate is ≤10%

Matters Needing Attention

1. Please pay attention to structural tolerances when designing. Unreasonable structural design may cause transient abnormalities in module functions.

2. Please pay attention to the electromagnetic compatibility evaluation when designing. Unreasonable system design may cause abnormal module function.

3. When the boundary application of the product limit parameter is involved, you can contact our FAE to confirm the relevant precautions.

4. The company reserves the right to change this document and update the functions without prior notice.
