U02 High Precision Non-contact Ultrasonic Fuel Level Sensor
U02 High Precision Non-contact Ultrasonic Fuel Level Sensor
Module : DYP-U02

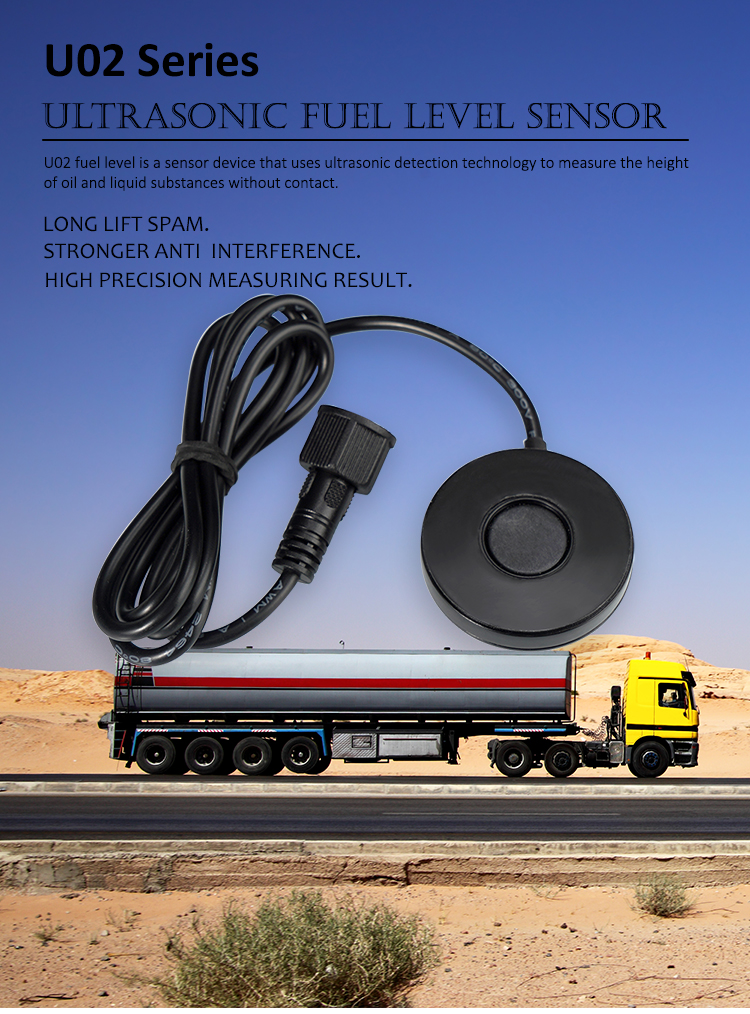

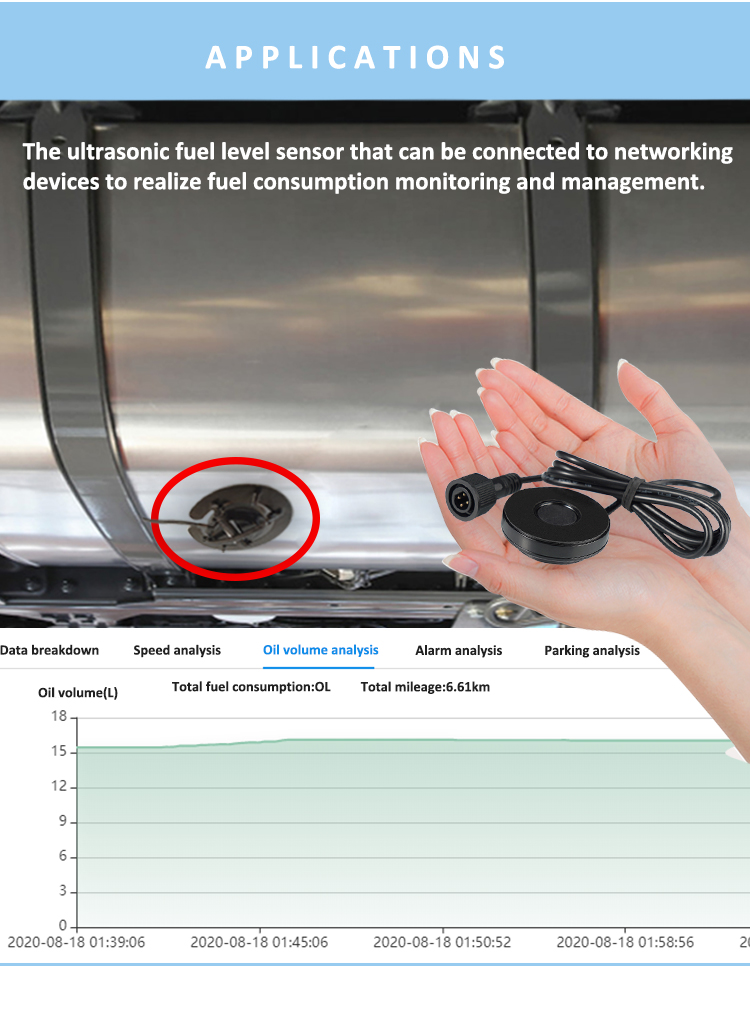

U02 oil level is a sensor device that uses ultrasonic detection technology to measure the height of oil and liquid substances without contact. Compared with traditional detection equipment, U02 oil level has high measurement accuracy and is easy to use. It can be installed externally (without destroying the container structure) and can be connected to networked equipment to realize network monitoring and management. Ultrasonic fuel level monitoring sensor is designed to optimize the mode of vehicle monitoring. It can adapt to vehicles running or stationary at various speeds on various roads. It can also output more stable data for other liquids loaded on the vehicle.
Here comes the detailed specifications of DYP-U02 :
Parameter | Value | Unit |
Input voltage | DC12～48 | V |
Average working current | ≤25 | mA |

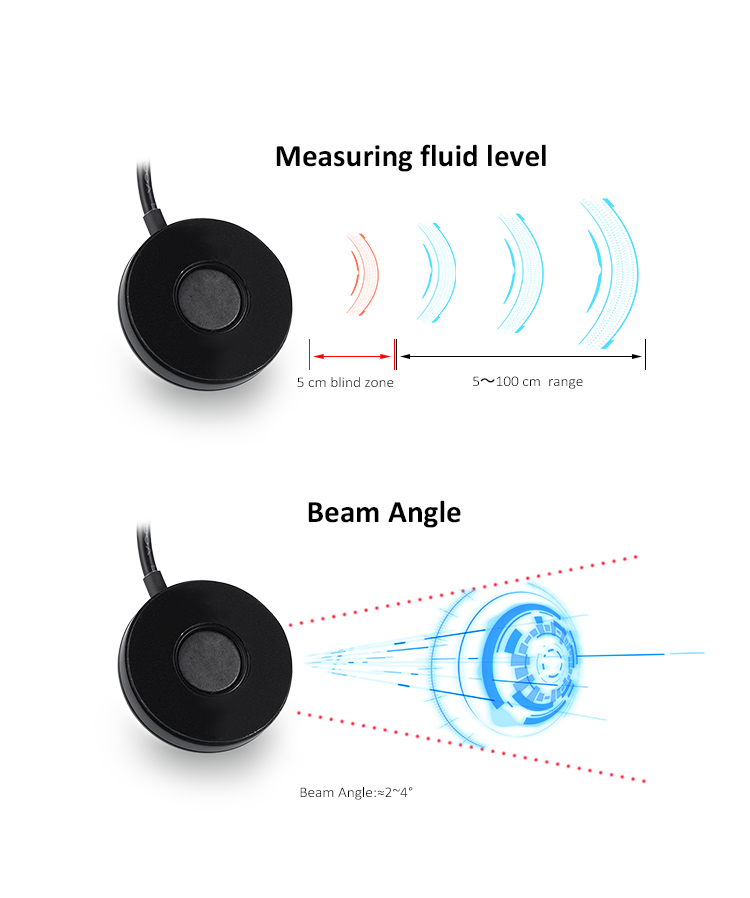

Measuring range | 50～1000 | mm |
Measurement accuracy | ≤5 | mm |
Resolution | ≤1 | mm |
Measuring angle | 2～4 | ° |
Measurable container thickness | 0.6～5.0 | mm |
Remarks:
(1)The higher the power supply, the lower the current.
(2)Normal temperature and humidity, 1 standard atmospheric pressure, the measuring liquid is 0# diesel oil, other liquids shall be tested, please specify when ordering;
(3)The target container has a wall thickness of 2mm, a steel material, and a diesel fuel content of 50-100cm. The inclination angle of the container is changed to test.
(4)The measurement distance is affected by the material and thickness of the container. For special materials or test thickness greater than 5.0mm, please specify when ordering.
Rated Environmental Conditions
Item | Minimum | Typical value | Maximum | Unit |
Storage temperature | -25 | 25 | 70 | ℃ |
Storage humidity | 65% | 90% | RH | |
Operating temperature | -20 | 25 | 60 | ℃ |
Operating humidity | 65% | 80% | RH |
Note:
(1) When the ambient temperature is 0-39℃, the maximum humidity is 90% (non-condensing).
(2) When the ambient temperature is 40-50℃, the highest humidity is the highest humidity (non-condensing) in nature at the current temperature.
Rated Electrical Condition
Parameter | Specification | Unit | remark | ||
Minimum | Typical value | maximum | |||
Working current | 10 | 24 | 48 | V | peak-to-peak |
Peak current | 150 | 500 | mA | peak-to-peak | |
Input ripple | 200 | mV | peak-to-peak | ||
Input noise | 500 | mV | peak-to-peak | ||
ESD | ±4K/±8K | V | |||
Note : The probe shell and output lead comply with IEC61000-4-2 standard.
Product Features

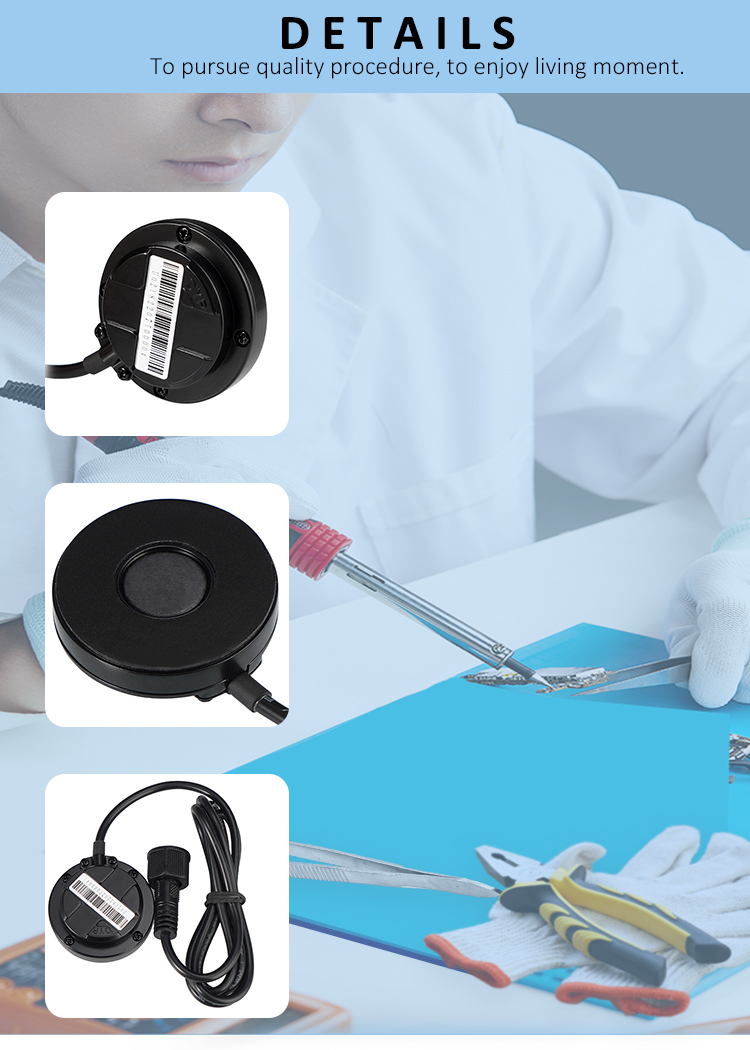

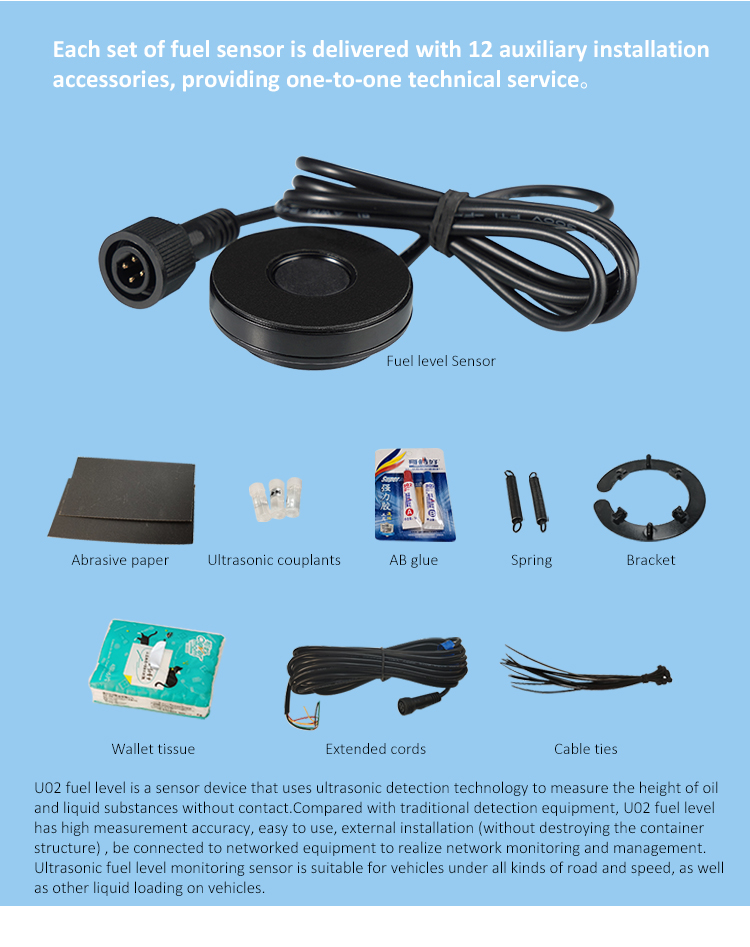

The DYP-U02 ultrasonic sensor stands out with its innovative design and robust performance. It enables non-contact measurement, ensuring that the container's shape remains intact and eliminating the need to polish its surface paint. Encased in a durable metal shell and featuring internal circuit potting treatment, the sensor is rainproof, making it perfectly suited for outdoor environments without any operational concerns. Installation is a breeze thanks to the external waterproof 3M adhesive and the included special metal fixing bracket, guaranteeing both simplicity and stability.
With wide voltage operation capabilities, it can function with a DC 12-48V power supply, making it adaptable to various vehicles. Its versatility is further enhanced by multiple output interfaces, including RS232, RS485, 0-5V voltage analog quantity, and TTL-UART, ensuring seamless compatibility with a range of sensor signal acquisition equipment. Leveraging high-frequency ultrasonic detection, the sensor offers strong solid penetration, enabling it to work effectively with containers made of diverse materials like metal and plastic.
In terms of performance, the DYP-U02 delivers highly stable measurement outputs, leveraging a built-in anti-interference data processing model to intelligently filter and compensate for environmental interference. Moreover, its high-precision measurement is achieved through a built-in high-precision calculation model, providing a millimeter-level measurement resolution. Overall, DYP-U02 combines practicality, durability and high precision, making it a key device for monitoring gas levels in storage tanks and cylinders.
Scope of Application
Model Selection
The output format of this series of ranging modules is divided into 3 formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.
| Pos. | Connection type | Model |
| U02 series | RS232 | DYP-U022M2W-V1.0 |
| RS485 | DYP-U022M4W-V1.0 | |
| 0-5V ANALOG VOLTAGE | DYP-U022MVW-V1.1 |
Precautions
(1)The total length of the ultrasonic sensor transmission line is 8 meters by default, and the user cannot extend the wire length by himself. To modify the wire size and Length, please communicate with relevant technical personnel of our company.
(2)When installing, ensure that the vehicle is parked on a flat road and the height of the liquid level in the fuel tank is ≥20cm.
(3)When installing the ultrasonic sensor, you need to follow the installation instructions.
(4)After refueling, the height change of the liquid level must be greater than 30mm, otherwise the oil level value will not be updated.
(5)Test the alarm function, it takes one minute after power-on to be effective.
Package
(1)Default is conventional package method.
(2)The packaging materials can be customized according to customer's requirement.
(3)The container transportation method needs to adopt the staggered consolidation method, and meanwhile, the outer edge of the single stack needs to be wrapped with a reinforced corner plate to provide sufficient support.
