Underwater Ultrasonic Wave Communication Module C01

Module : DYP-C01

DYP-C01 underwater wireless communication ultrasonic sensor module is designed specifically for complex underwater environments and underwater communication system, achieve shouting-distance data communication underwater. There are 2 different specifications: dual-module and triple-module, and feature functions such as rapid remote control, multi-byte communication, positioning and deviation correction.

Here comes the detailed specifications of DYP-C01 :

Product Item	DYP-C01A(Dual-module)	DYP-C01B(Triple-Module)
Function	Remote Control, Multi-byte	Remote Control, Multi-byte, Positioning, Deviation Correction
Working Voltage	5V±5%	5V±5%
Standby Current	＜18mA	＜18mA
Average Operating Current	＜30mA	＜30mA
Max Communication Distance	1～2000cm	1～2000cm
Communication Perspective	360deg	360deg
Communication Time-delay	Minimum 300ms	Minimum 510ms
Communication Byte	1～7 Byte	1～7 Byte
Positional Accuracy	-	3+S*1%cm
Output Method	UART controlled、 RS485	UART controlled、 RS485
IP Rate	Water Pressure Test5M@168H	Water Pressure Test5M@168H

Remarks:

(1)The module exceeds 5S does not receive the control instruction will enter a low power consumption dormant state, when the power consumption current is the standby power consumption current;

(2)Typical data obtained by testing with temperature 25°℃, humidity 65%RH,power supply 12V,and 100ms working cycle;

(3)The temperature is 25℃, the humidity is 65%RH, the measured object is a 50cm×60cm flat carton,and the transducer should be as vertical as possible. S represents the measurement distance;

(4)The output response time is 0.5~3m range test, the shorter the range, the faster the response time.

(5)Test data for single-angle modules, the measured object is the reference data obtained from the test of φ 75mm×100cm white PVC pipe with a distance of 100cm.

Product Features

The C01 module is a wireless data transmission sensor specially designed for complex underwater environments. Based on ultrasonic modulation and demodulation technology, it enables shouting-distance data communication underwater. The product is equipped with functions such as rapid remote control, multi-byte communication, positioning, and deviation correction. It supports multi-scenario applications underwater, enabling wireless intelligent control, real-time communication, and scientific research detection of underwater robots. It features low power consumption, high reliability, and strong anti-interference ability.

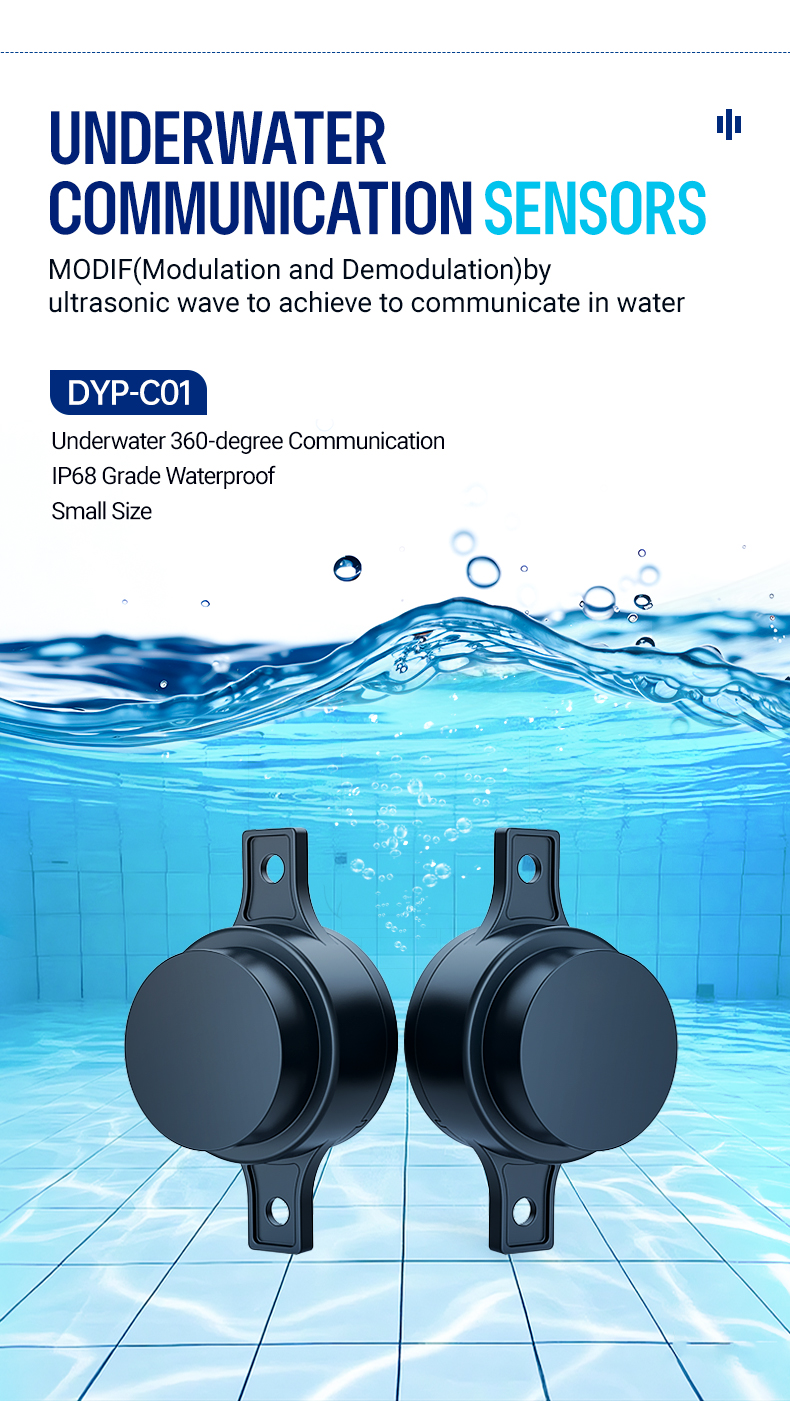

An underwater communication sensor---DYP-C01

Ultrasound modulation and demodulation technology

Scope of Application

Module DYP-C01 mainly used for achieving shouting-distance data communication underwater.

DYP-C01 supports multiple underwater applications

Model Selection

The output format of this series of ranging modules is divided into six formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE during purchasing.

No.	Output method	C01 Series Model
1	UART controlled、 RS485	DYP-C01A(Dual-module)
2	UART controlled、 RS485	DYP-C01B(Triple-Module)

Installation Suggestions

1. When installing the sensor, ensure that the transmitting surface of the transducer is parallel to the measured plane, so as to ensure that the sound waves emitted vertically to the surface of the measured object return with maximum energy to ensure maximum range stability and reliability;

2. In front of the sensor, it should be noted that except for the measured object, other objects should avoid the sensor testing range;

3. There is steam at the site of use and installation, and water droplets are easy to adhere to the surface of the probe, so try to avoid the influence of water droplets;

4. The installation and fixation of the sensor needs to avoid structural deformation, metal or other resonance, and avoid resistance components such as elbows, valves, variable diameters;

5. The installation height of the ground or obstacle objects and the module is recommended. The actual module installation height can refer to the above effective detection range reference diagram, and select the appropriate installation height according to the range of different angle requirements.
