Hot Sale Ultrasonic Transducer for Bin and Tank Level Detection Ultrasonic Distance Sensor
Module : DYP-A01
A01 integrated waterproof module is a module that uses ultrasonic sensing technology for distance measurement. The module adopts high-performance processor and high-quality components, the product is stable and reliable, and has a long service life. The module uses a waterproof ultrasonic transducer, which is highly adaptable to the working environment. The module is equipped with a special bell mouth, which is suitable for larger detection range requirements. This series has a variety of different output methods, is a simple operation high-performance, high-reliability commercial-grade functional module.
Here comes the detailed specifications of DYP-A01 :
Parameters | A01A
(Flat Object Distance Sensing） | A01B
(Human Body Detecting) | A01C
(Waste Level Detecting） | Unit | Remarks |
OperatingVoltage | 3.3～5.0 | V | DC |
AverageCurrent | ＜10 |
mA
| |
BlindAreaDistance | ≤28 |
cm
| |
WithoutBellMouthRange | 28～450 | 28～250 | cm | |
WithBellMouthRange | 28～750 | 28～250 | cm | |
WithoutBellMouthAngle | - | ≈75 | - |
°
| |
WithBellMouthAngle | ≈40 | ≈65 | - | ° | |
Residual Ripple | ≤50 | mA | |
Power Consumption | ≤10 | mA | |

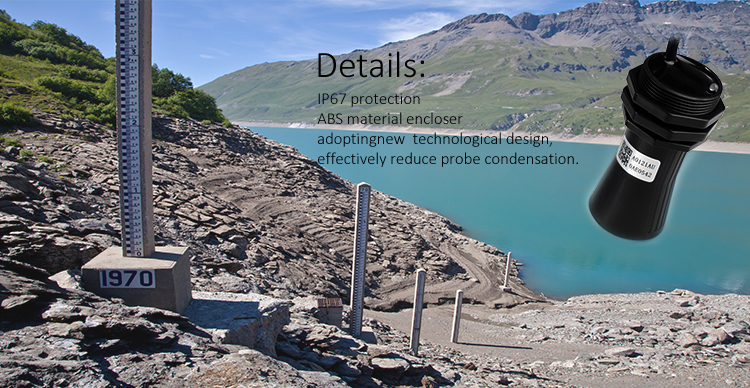

Enclosure Rating | IP 67 | |
OutputMethod | UART automatic output; UART controlled output; PWM controlled output; PWM automatic output; Switch output. | UART automatic output; UART controlled output; PWM controlled output; PWM automatic output; Switch output. | UART automatic output; PWM automatic output. | - | |
Remarks:
(1)The module exceeds 5S does not receive the control instruction will enter a low power consumption dormant state,when the power consumption current is the standby power consumption current;
(2)Typical data obtained by testing with temperature 25°℃,humidity 65%RH,power supply 12V,and 100ms working cycle;
(3)The temperature is 25℃,the humidity is 65%RH,the measured object is a 50cm×60cm flat carton,and the transducer should be as vertical as possible.S represents the measurement distance;
(4)The output response time is 0.5~3m range test,the shorter the range,the faster the response time.
(5)Test data for single-angle modules,The measured object is the reference data obtained from the test of φ 75mm×100cm white PVC pipe with a distance of 100cm.

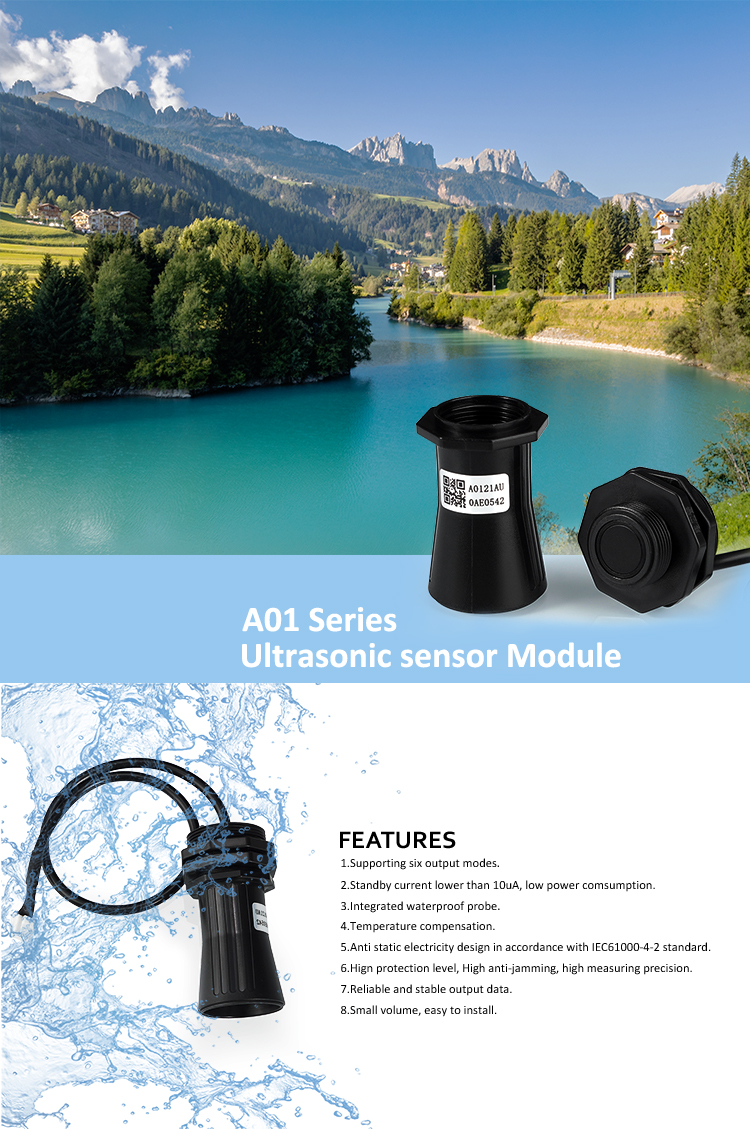

Product Features
The DYP-A01 ultrasonic sensor features a 3.3V to 5.0V power supply and a standby current lower than 10μA, ensuring low power consumption. It is equipped with a one-piece enclosed waterproof probe, making it suitable for various environments. With temperature compensation, the sensor maintains reliable performance within the working temperature range of -15℃ to +60℃ and storage temperature range of -25℃ to +80℃. It offers a measurement accuracy of ±(1cm + S*0.3%) (where S is the measured value), ensuring precise distance detection. Additionally, the sensor incorporates an electrostatic protection design, with electrostatic protection devices added to the probe shell and I/O leads, complying with IEC61000 - 4 - 2 standards for enhanced durability and safety.
The DYP-A01 is a high-performance ultrasonic level sensor, designed to excel in various liquid level monitoring tasks. As an advanced ultrasonic level transmitter, it efficiently converts level data into transmit signals, ensuring seamless integration with monitoring systems. This ultrasonic liquid level sensor stands out for its precision, making it ideal for applications where accurate liquid level detection is crucial.
As an ultrasonic tank level sensor, the DYP-A01 performs exceptionally well in monitoring tank contents. It works by functioning as an ultrasonic distance sensor, measuring the distance from the sensor to the liquid surface, and then translating that into precise level readings. Whether used in small containers or large industrial tanks, this ultrasonic level sensor delivers reliable results, ensuring operators stay informed about liquid levels at all times.
The ultrasonic level transmitter capability of the DYP-A01 allows for real-time data transmission, which is vital for automated processes. This ultrasonic liquid level sensor can adapt to different liquid types, from water to viscous fluids, maintaining its accuracy. As an ultrasonic tank level sensor, it withstands harsh environments, including temperature variations and minor vibrations, without compromising performance.
Not only is the DYP-A01 a top-notch ultrasonic distance sensor for level measurement, but it also integrates smoothly into complex systems. Its dual role as an ultrasonic level sensor and ultrasonic level transmitter makes it a versatile choice for both simple and advanced setups. The ultrasonic liquid level sensor feature ensures that even in turbulent liquid conditions, the readings remain stable.
In industrial settings, the DYP-A01 shines as an ultrasonic tank level sensor, providing continuous monitoring to prevent overflows or shortages. As an ultrasonic distance sensor, it offers a wide measurement range, catering to various tank sizes. This ultrasonic level sensor is easy to install, and its ultrasonic level transmitter function ensures that data is relayed promptly to control centers.
Whether it's acting as an ultrasonic liquid level sensor in chemical storage, an ultrasonic tank level sensor in water treatment plants, or an ultrasonic distance sensor in automated filling systems, the DYP-A01 proves its worth. Its combination of being a reliable ultrasonic level sensor, efficient ultrasonic level transmitter, accurate ultrasonic liquid level sensor, robust ultrasonic tank level sensor, and precise ultrasonic distance sensor makes it an indispensable tool in liquid level management.
The output format of this series of ranging modules is divided into six formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.
| No. | Application | Main Spec. | Output interface | Model No. |
|---|
| A01A Series | Flat object | IP67 with extended horn
28cm～750cm Measuring range
40°Beam angle | UART AUTO | DYP-A01ANYUB-V2.0 |
| UART CONTROLLED | DYP-A01ANYTB-V2.0 |
| PWM AUTO | DYP-A01ANYWB-V2.0 |
| PWM CONTROLLED | DYP-A01ANYMB-V2.0 |
| SWITCH | DYP-A01ANYGDB-V2.0 |
| RS485 | DYP-A01ANY4B-V2.0 |
| A01B Series | People detection | IP67
28cm～450cm Measuring range
stable measurment of upper body within 200cm
75°beam angle | UART AUTO | DYP-A01BNYUW-V2.0 |
| UART CONTROLLED | DYP-A01BNYTW-V2.0 |
| PWM AUTO | DYP-A01BNYWW-V2.0 |
| PWM CONTROLLED | DYP-A01BNYMW-V2.0 |
| SWITCH | DYP-A01BNYGDW-V2.0 |
| RS485 | DYP-A01BNY4W-V2.0 |
IP67 with extended horn
28cm～750cm Measuring range
40°Beam angle | UART AUTO | DYP-A01BNYUB-V2.0 |
| UART CONTROLLED | DYP-A01BNYTB-V2.0 |
| PWM AUTO | DYP-A01BNYWB-V2.0 |
| PWM CONTROLLED | DYP-A01BNYMB-V2.0 |
| SWITCH | DYP-A01BNYGDB-V2.0 |
| RS485 | DYP-A01BNY4B-V2.0 |
| A01C Series | Waste Bin Level | IP67 with extended horn
28cm～250cm measuring range | UART AUTO | DYP-A01CNYUB-V2.1 |
| UART CONTROLLED | DYP-A01CNYTB-V2.1 |
| RS485 | DYP-A01CNY4B-V2.1 |
Matters Needing Attention
1. Please pay attention to the structural tolerances when designing. Unreasonable structural design may cause transient abnormalities in module functions.
2. Please pay attention to the electromagnetic compatibility evaluation when designing. Unreasonable system design may cause abnormal module function.
3. When the boundary application of the product limit parameter is involved, you can contact our FAE to confirm relevant precautions.
4. The company reserves the right to change this document and update the functions without prior notice.
