Model No: DYP-L07

DYP-L07 Ultrasonic Water Tank Level Monitoring Sensor

The L07-module is an ultrasonic liquid level sensor designed based on liquid level detection applications.
It is aimed at the current market requirements.
The design is focused on the problems of large blind area, large measurement angle, long response time, and poor installation adaptability of the ultrasonic sensor module.

Delivery :

EXW

minimum order :

10 units

Supply Ability :

10000units / Month

Stock Time :

7-10Day

Country of Origin :

Guangdong, China

Quantity :

Contact Now

Ultrasonic Water Tank Level Monitoring Sensor

Module : DYP-L07

DYP-L07 ultrasonic level sensor for water tank is an ultrasonic level sensor designed for liquid level height detection applications, focus on designing for problems on the current market ultrasonic sensor module large blind spot, large measurement angle, long response time, poor installation adaptability and other problem.

Here comes the detailed specifications of DYP-L07 :

Parameters	UART Auto		UART Controlled		Switch Volume	IIC		RS485	PWM	Remarks
Working Voltage	3.3~12 V									DC
Standby Current	-		≤5uA		-	-		-	≤5uA	-
Average Working Current	≤9mA					≤10mA			≤9mA	-
Blind Area Distance	≤1.5cm									-
Measuring Range of Flat Object	1.5～200cm									-
Response Time	≥2000ms	8～42ms		≥2000ms		8～42ms	15～230ms		＜8ms	-
Power on Working Time	≤650ms									-
Operating Cycle	100ms	Controlled		100ms		Controlled				-
Output Interface	Auto	Controlled		Auto		Controlled				-
Accuracy	0.5+（S*0.3%)cm								1+（S*0.5%)cm	-
Temperature Compensation	Support									-
Beam Angle	10～50°									-

Remarks:

(1)The module exceeds 5S does not receive the control instruction will enter a low power consumption dormant state, when the power consumption current is the standby power consumption current;

(2)Typical data obtained by testing with temperature 25°℃, humidity 65%RH, power supply 12V, and 100ms working cycle;

(3)The temperature is 25℃, the humidity is 65%RH, the measured object is a 50cm×60cm flat carton, and the transducer should be as vertical as possible. S represents the measurement distance;

(4)The output response time is 0.5~3m range test, the shorter the range, the faster the response time.

(5)Test data for single-angle modules, the measured object is the reference data obtained from the test of φ 75mm×100cm white PVC pipe with a distance of 100cm.

Product Features

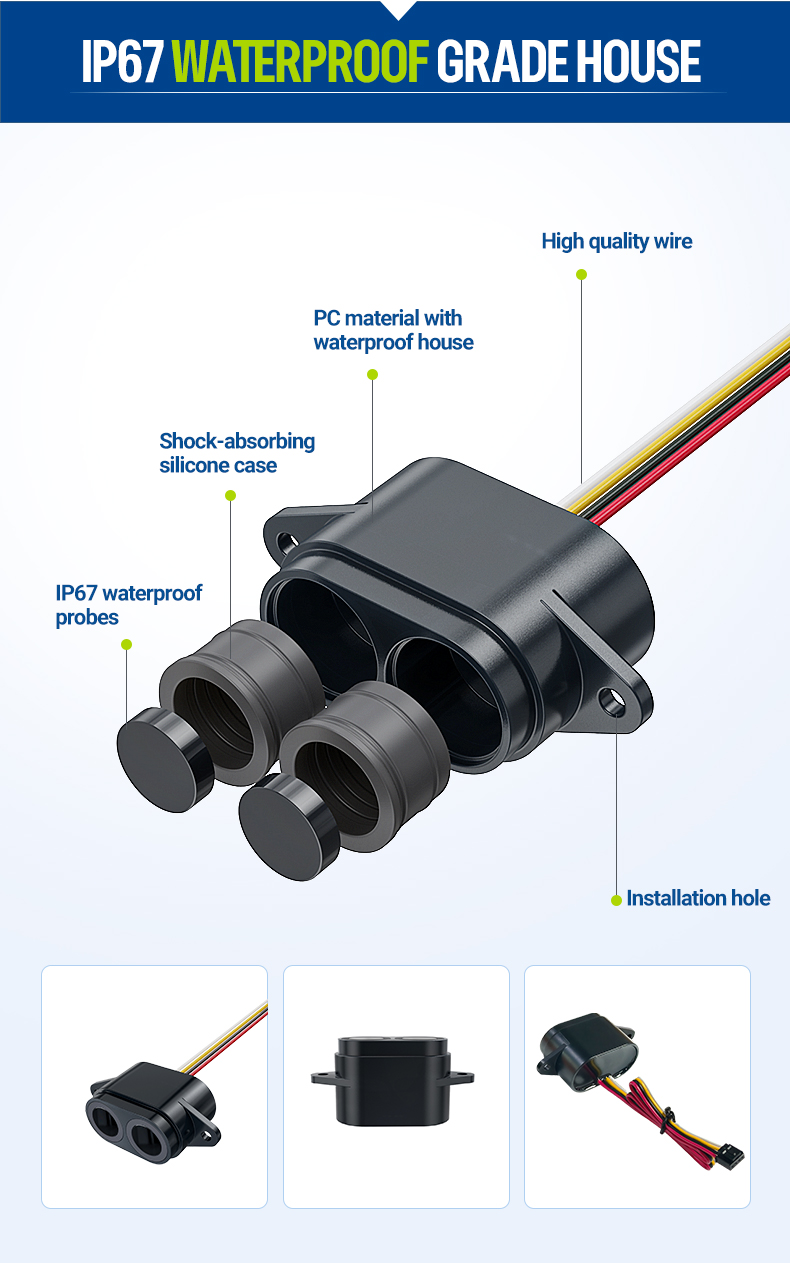

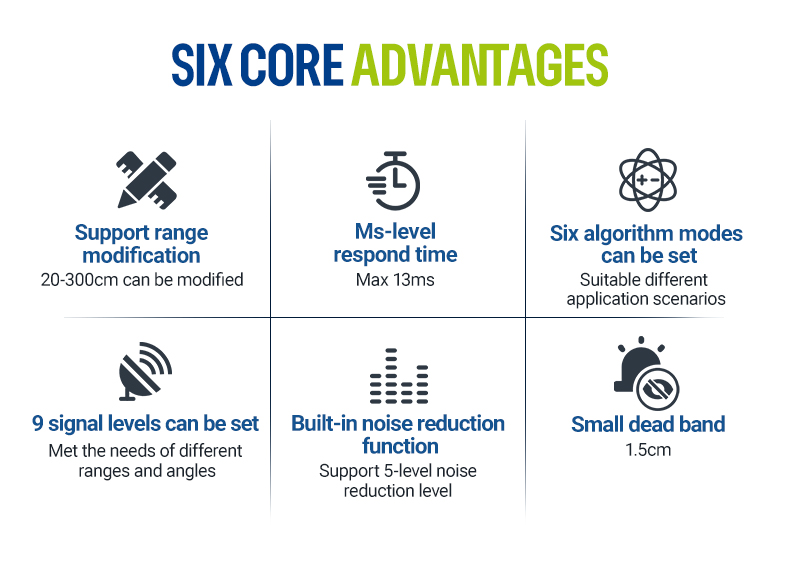

DYP-L07ultrasonic sensor features a food-grade material shell, ensuring safety in hygienic environments. It supports wide voltage power supply, operating at 3.3～12V, and offers a 1.5cm standard blind area (with a minimum product blind area of 0.8cm). The furthest detection range within 30cm～300cm can be set via commands. For output flexibility, it provides options like UART auto/controlled, PWM controlled, Switch TTL level, RS485, and IIC. The default baud rate is 115,200, adjustable to 4800, 9600, 14400, 19200, 38400, 57600, or 76800, with a response time as fast as 13ms for data output.

With 6 configurable algorithm modes—including liquid level sloth filtering, small step filtering, and high sensitivity—it adapts to diverse scenarios. Nine signal levels and 5 noise reduction levels (built-in noise reduction function) cater to different ranges, angles, and noisy power supplies (suitable for battery, USB, or switching power sources). Its IP67 waterproof structure and ultra-wide temperature design (-25°C to +65°C) enhance durability. The sensor also ensures strong installation adaptability and includes electrostatic protection on input/output interfaces, complying with IEC61000-4-2 standards.

DYP-L07 ultrasonic sensor is a versatile device engineered to excel in liquid level monitoring, with a strong focus on applications like green plant box nutrient solution monitoring, soilless cultivation nutrient solution monitoring, air disinfector box internal disinfectant liquid level monitoring, and more. As a reliable remote water level sensor, it stands out in scenarios where real-time data collection from a distance is crucial, while also functioning seamlessly as an ultrasonic tank level monitor for various storage systems.

In agricultural settings, DYP-L07 shines in green plant box nutrient solution monitoring. It accurately tracks the nutrient solution levels in plant boxes, ensuring that greenery receives the right amount of nutrients for healthy growth.

When it comes to air disinfector box internal disinfectant liquid level monitoring, the DYP-L07 proves indispensable. It continuously monitors the disinfectant levels inside the box, alerting users when refills are needed to ensure the disinfector operates at peak efficiency, keeping the surrounding air clean and safe. As a remote water level sensor, it enables users to check water levels in tanks or reservoirs from a distance, eliminating the need for manual inspections and enhancing convenience.

DYP-L07 capabilities extend to air disinfector box internal disinfectant liquid level monitoring, where its precision ensures that the disinfectant never runs low unexpectedly, safeguarding the effectiveness of the disinfection process. As a remote water level sensor, it connects easily to monitoring systems, enabling centralized tracking of water levels across multiple locations.

Whether applied to green plant box nutrient solution monitoring to keep potted plants thriving, soilless cultivation nutrient solution monitoring to optimize crop growth, air disinfector box internal disinfectant liquid level monitoring to maintain clean air, or functioning as a remote water level sensor and ultrasonic tank level monitor for diverse liquid storage needs, the DYP-L07 ultrasonic sensor delivers unmatched accuracy and reliability, making it an essential tool in liquid level management.

DYP-L07 Regular Ultrasonic Sensors for Liquid Level

Scope of Application

Module DYP-L07 mainly used in Top-mounted level detection.

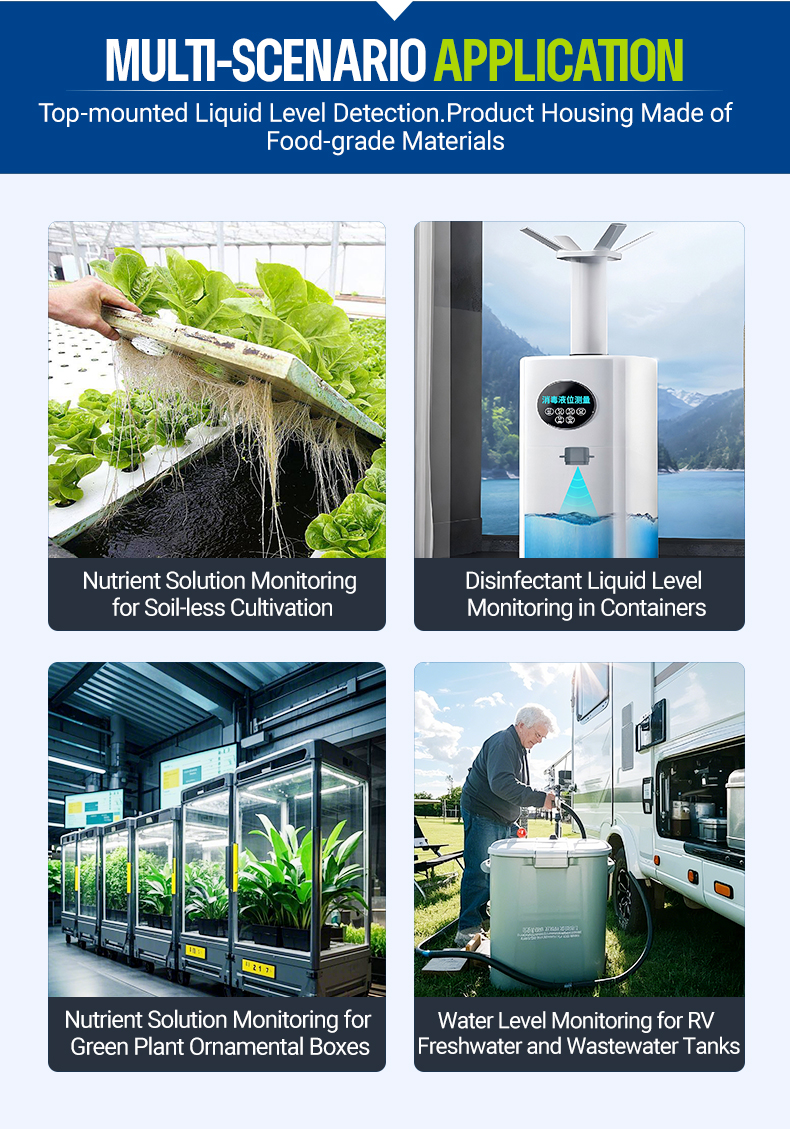

L07 also has multi-scenario applications

Model Selection

The output format of this series of ranging modules is divided into six formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.

No.	Output method	L07 Series Model
1	UART AUTO	DYP-L07AYYUW-V1.0
2	UART CONTROLLED	DYP-L07AYYTW-V1.0
3	PWM PULSE WIDTH	DYP-L07AYYMW-V1.0
4	SWITCH OUT	DYP-L07AYYGDW-V1.0
5	IIC	DYP-L07AYYCW-V1.0
6	RS485	DYP-L07AYY4W-V1.0

Installation Suggestions

1. When installing the sensor, ensure that the transmitting surface of the transducer is parallel to the measured plane, so as to ensure that the sound waves emitted vertically to the surface of the measured object return with maximum energy to ensure maximum range stability and reliability;
2. In front of the sensor, it should be noted that except for the measured object, other objects should avoid the sensor testing range;
3. There is steam at the site of use and installation, and water droplets are easy to adhere to the surface of the probe, so try to avoid the influence of water droplets;
4. The installation and fixation of the sensor needs to avoid structural deformation, metal or other resonance, and avoid resistance components such as (elbows, valves, variable diameters).

Matters Needing Attention

1. Please pay attention to the structural tolerances when designing. Unreasonable structural design may cause transient abnormalities in module functions;

2. Please pay attention to the evaluation of electromagnetic compatibility when designing. Unreasonable system design may cause abnormal module function;

3. When the boundary application of the product limit parameter is involved, you can contact our FAE to confirm the relevant precautions.

4. The response time and same-frequency interference of this product are configured in common scenarios, and can be improved in special scenarios. You can contact our FAE to communicate with related matters.
