Large-range High-precision Ultrasonic Water Level Sensor DYP-A16
The module adopts high-performance processor, high-quality components and anti-water probe design.
The sensor is stable and reliable and has a long life span, which is highly adaptable to the poor working condition.
Large-range High-precision Ultrasonic Water Level Sensor
Module : DYP-A16

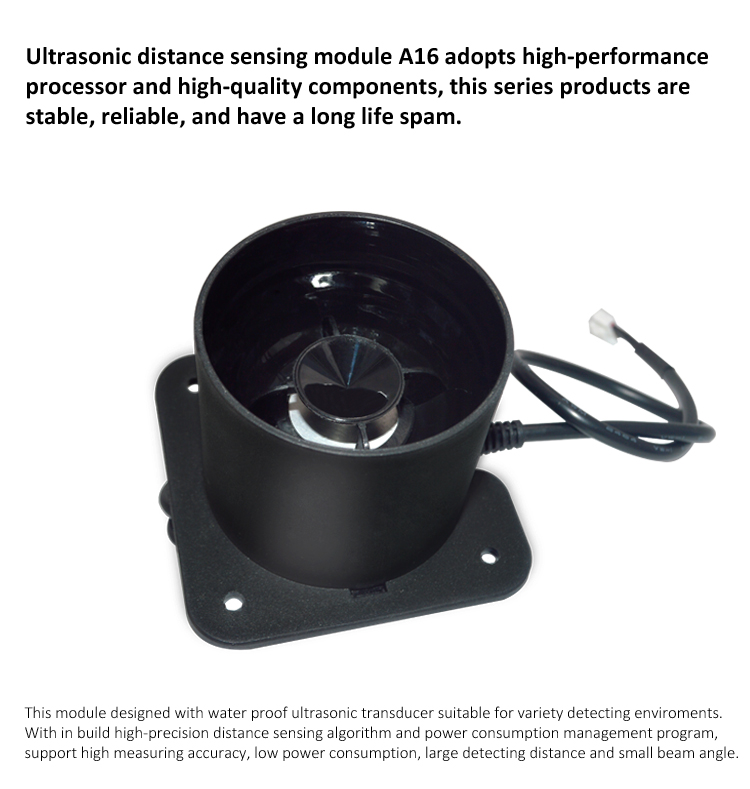

DYP-A16 ultrasonic smart water level sensor module uses proven ultrasonic sensing technology for distance measurement. Adopts high-performance processor and superior quality elements which output reliable stability value and has long life span. Waterproof ultrasonic transducer with strong adaptability to various operating environment. This module build-in high precision ranging algorithm and power consumption management procedure, has high ranging accuracy, low power consumption, long measuring distance and narrow measurement angle features.
Here comes the detailed specifications of DYP-A16 :
Item Description | PWM | UART Auto | UART Controlled | Switch | RS232 | RS485 | Unit | Remark |
Operating Voltage | 3.3～24 | V | DC | |||||
Standby Current | ≤15 | - | ≤15 | - | - | - | uA | - |
Average Operating Current | ≤15 | ≤15 | ≤15 | ≤15 | ≤15 | ≤15 | mA | - |

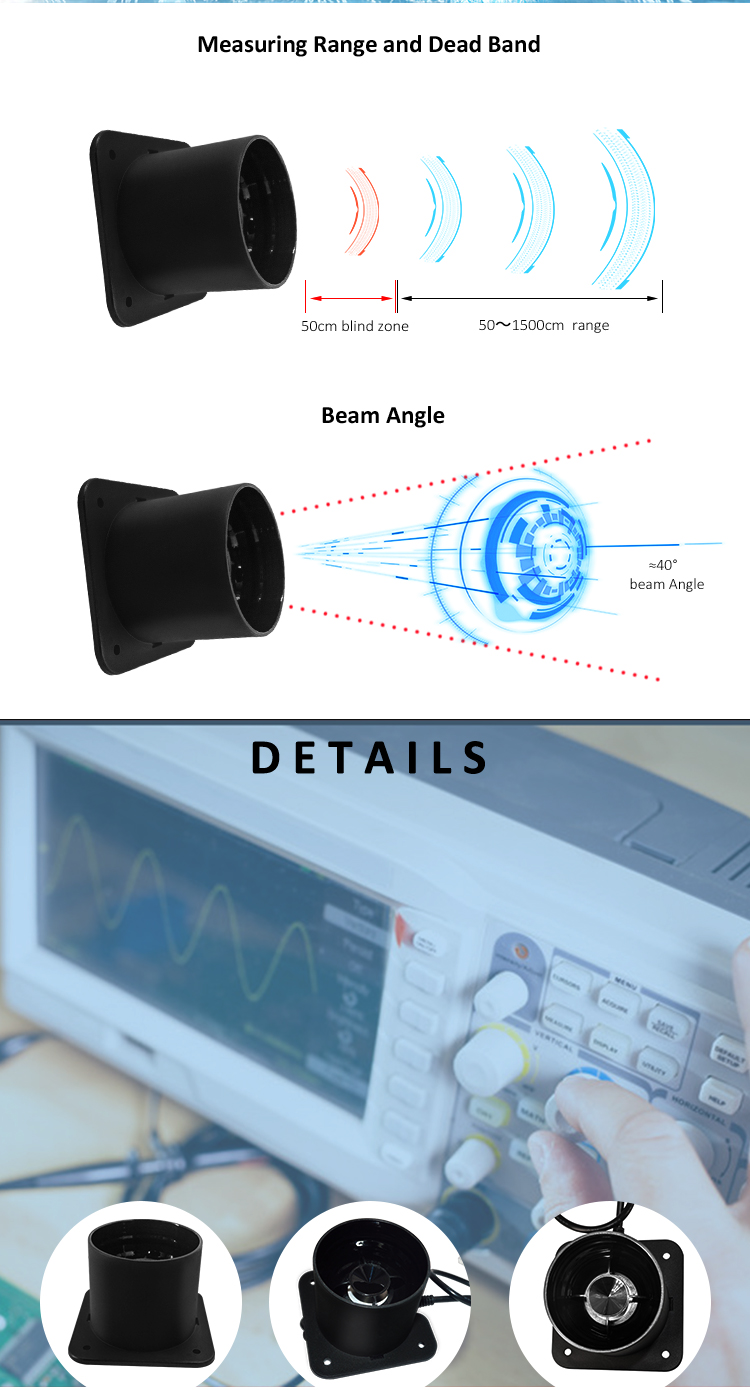

Blind Zone | 50 | 50 | 50 | 50 | 50 | 50 | cm | - |
Measuring Range of Flat Object | 50～1500 | cm | - | |||||
Beam Angle | ≈40° | - | - | |||||
Accuracy | ±(1+S×0.3%) | cm | - | |||||
Temperature Compensation | Support | - | - | |||||
Remarks:
(1) Typical data obtained from a test with a temperature of about 25℃, power supply of 12V, 500ms duty cycle.
(2) The temperature is about 25℃, the measured object is a 50cm×60cm flat carton, and the transducer must be as vertical as possible to the measured object.
(3) The measured object is the reference data obtained from the test of a φ75mm×100cm white PVC pipe with a distance of 100cm.
(4) The temperature is about 25℃, and the indoor environment without wind, the measured object is a 50cm×60cm flat carton, and S means the measuring distance.
Rated Environmental Conditions
Item | Minimum value | Typical value | Max value | Unit |
Storage Temp | -25 | 25 | 80 | ℃ |
Storage Humidity | - | 65% | 90% | RH |
Operating Temp | -15 | 25 | 60 | ℃ |
Operating Humidity | - | 65% | 80% | RH |
Remark:
(1)Environment temperature is 0-39℃, max humidity is 90%(Non-condensation);
(2)Environment is 40-50℃, max humidity is the highest at current temperature in nature.
Rated Electrical Condition
Item | Minimum Value | Typical Value | Max Value | Unit | Remark |
Operating Voltage | 3.2 | 5.0 | 24 | V | Peak value |
Peak Current | 50 | - | 70 | mA | Peak value |
Input Ripple | - | - | 50 | mV | Peak value |
Input Noise | - | - | 100 | mV | Peak value |
ESD | - | - | ±200/±2K | V | - |
ESD | - | - | ±4K/±8K | V | - |
Remark :
(1)The static electricity specification of assembly line,contact static electricity should not be higher than ±200V,and air static electricity should not be higher than ±2KV;
(2)The probe shell and output lead comply with the IEC61000-4-2 standard.

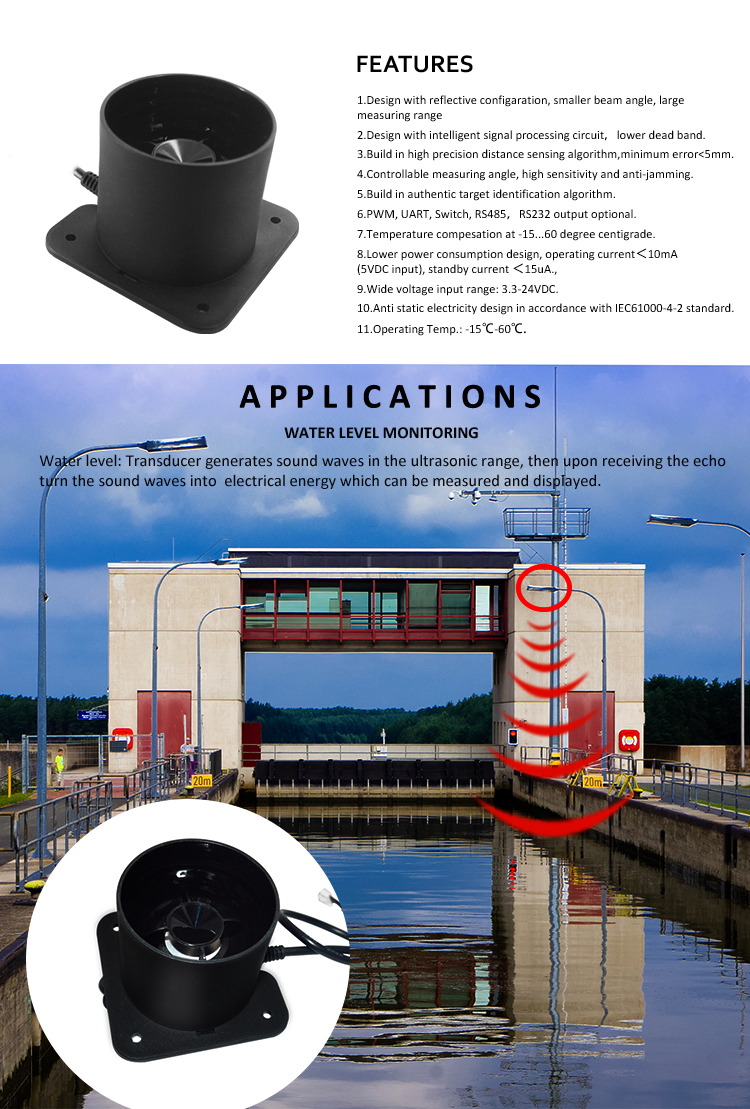

Product Features

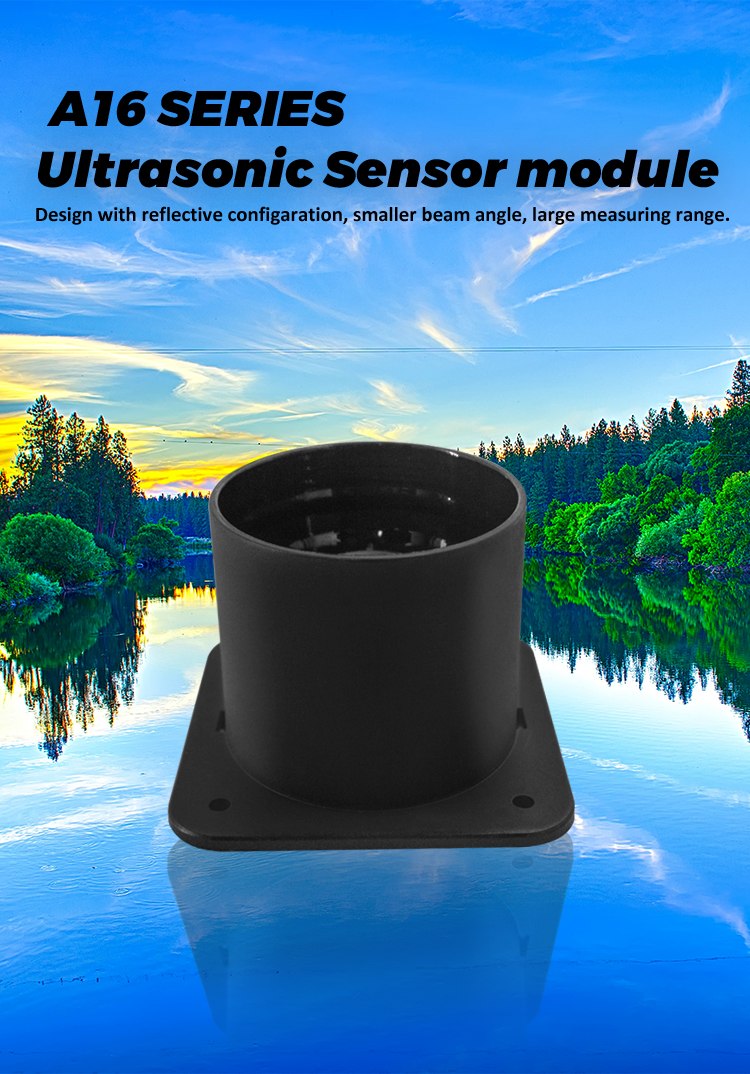

DYP-A16 ultrasonic sensor integrates advanced technologies to deliver exceptional distance measurement performance. Featuring a reflective structure, it ensures a long detection range with a narrow beam angle, while the smart signal processing circuit minimizes the blind zone. Its built-in high-accuracy ranging algorithm achieves a minimum error of <5mm, and the controllable measuring angle enhances sensitivity and anti-interference capability. A true target recognition algorithm further boosts accuracy in identifying objects.
With versatile output interfaces—including PWM, UART, Switch, RS232, and RS485—it offers high adaptability for various systems. The internal temperature compensation function ensures stable ranging from -15°C to +60°C. Designed for low power consumption, it draws <15μA in standby and <10mA during operation (with 5VDC input), while supporting a wide voltage supply range of 3.3-24V. Compliant with IEC61000-4-2 standards, its anti-static design ensures reliability across the -15°C to +60°C operating temperature range.
Scope of Application
Model Selection
DYP-A16 module providing variety of output formats,customer can choose the corresponding model according to actual application needs.
| No. | Connection type | Model |
| A16 series | UART AUTO | DYP-A16NYUW-V1.0 |
| UART CONTROLLED | DYP-A16NYTW-V1.0 | |
| PWM | DYP-A16NYMW-V1.0 | |
| SWITCH | DYP-A16NYGDW-V1.0 | |
| RS485 | DYP-A16NY4W-V1.0 | |
| RS232 | DYP-A16NY2W-V1.0 |
Notice
(1) When two or more modules are used in the application scenario, it is recommended to use a module with controlled output (high-level pulse width output, UART controlled output), and use a time-sharing work method to prevent mutual communication between modules interference.
(2) In an environment with fast wind speed, the measurement and accuracy of the module will be affected. You can contact our sales to confirm related matters.
(3) Please pay attention to the evaluation of electromagnetic compatibility when designing. Unreasonable system design may cause malfunction of the module.
(4) When it comes to the application of the module limit parameter boundary, you can contact our engineer to confirm the relevant precautions.
