DS1603DA Compact Probe High Precision Ultrasonic Liquid Level Sensor
The sensor shall be attached to the bottom center of the container to detect the liquid level height.
Compact Probe High Precision Ultrasonic Liquid Level Sensor
Module : DYP-DS1603DA
The DS1603DA ultrasonic liquid level data sensor series breaks through the traditional installation method of opening cans and realizes the real non-contact measurement of the liquid level in a closed container. The sensor is installed directly below (bottom) of the container under test to detect the height of the liquid level. There is no need to open holes for the container to be tested, and the installation is simple and online installation can be realized. It can accurately measure the level of various toxic substances, strong acids, strong alkalis and various pure liquids in high temperature and high pressure airtight containers. The sensor has no special requirements for the material of the liquid medium and container, and can be widely used.
Here comes the detailed specifications of DYP-DS1603DA :
Items | DS1603DA-3U V2.0 | DS1603DA-3R V2.0 | Unit |
Operating voltage | 10~36 | V | |
Operating current | ≤30 | mA | |

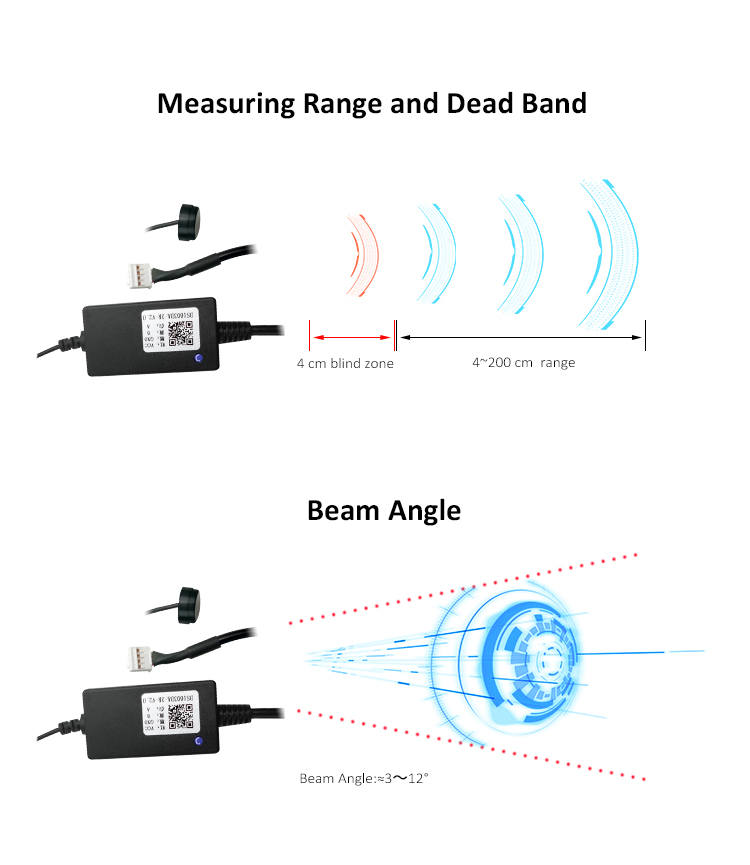

Blind spot distance | ≤40 | / | |
Flat object measurement range | 40~2000 | mm | |
Work period | 2 | s | |
Output method | UART serial port | RS485 | / |
Resolution | 1 | mm | |
Measurement accuracy | ±(5+S*1%) | mm | |
Frequency | 3 | MHz | |
ESD | ±4/±8 | KV | |
Remarks:
(1) 12V power supply, 2S working cycle test data.
(2) Data obtained by testing water with a steel plate container with a thickness of 2mm at room temperature and a container diameter of Φ160mm.
(3) DS1603DA-3R V2.0 work cycle is 2S by default, which can be set by software.
(4) a. S represents the current liquid level height.
b. 2mm thickness steel plate container at room temperature, data obtained by testing the water level of 2000mm height.
Product Features
DYP-DS1603DAultrasonic sensor stands out with its non-contact liquid level measurement capability, ensuring safe operation in diverse scenarios. Ultrasonic level sensor for water tank supports a wide 10~36V working voltage range, adapting flexibly to different power systems. The full-range real-time tracking feature allows continuous monitoring, eliminating the need to restart when the container transitions from empty to liquid-filled, which significantly simplifies installation and commissioning.
Equipped with both automatic UART serial port output and RS485 controlled output, ultrasonic tank level sensor offers versatile connectivity for seamless data transmission. The sensor operates reliably within -15℃ to +60℃ and withstands storage temperatures from -25℃ to +80℃, making it suitable for harsh environments. Its electrostatic protection design, with anti-static devices on I/O pins, complies with the IEC61000-4-2 standard, enhancing durability and safety. Combining high adaptability, easy operation, and robust protection, the DYP-DS1603DA is an ideal choice for non-contact liquid level sensing in industrial automation and smart monitoring applications.
Principle Explanation
1. Externally Attached Ultrasonic Liquid Level Sensor
The externally attached ultrasonic level sensor for water tank adopts the principle of ultrasonic distance measurement, uses a special probe attached to the outside of the container wall to collect ultrasonic signals, uses special ultrasonic processing technology as the core of the system, adopts advanced high-speed signal processing technology, and uses special algorithms of Dianpingpu Accurately calculate the inside of the container Liquid level. The sensor can feedback the measurement result to the control center through UART serial port or RS485 output interface.
When measuring the liquid level, the ultrasonic signal is emitted from the probe, and the echo signal is detected by the probe after being reflected by the liquid surface. The echo signal is processed by a proprietary algorithm to calculate the time, and the system calculates the liquid level according to the formula or confirms whether there is liquid.
2. Level Measurement
It is necessary to measure 100% reliable and stable liquid level value, and ensure that the measured object is within the effective range of the sensor. Most users find that the sensor can also measure in the blind zone or outside the range. Due to the physical characteristics of ultrasonic waves, for different measurement objects, the company does not guarantee the accuracy of the measurement range value.
Model Selection
The output format of this series of ranging modules is divided into 2 formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.
| Pos. | Connection type | Model |
| DS1603 V2.0 Series | UART AUTO | DS1603DA-3U V2.0 |
| RS485 | DS1603DA-3R V2.0 |
Note
(1) Regardless of the value of the sensor's address, once a data frame with an address value of 0xff is received, it will respond according to the command feature code of the data frame, and the response address value is the local address value, not 0xff.
(2) When using the broadcast address when using the 0x03 command, 0xff will not be set as the sensor address, only the current address value of the sensor will be returned.
(3) The broadcast address can be used when the address of the sensor cannot be obtained, and the address of the current sensor can be obtained according to the address bit of the reply data frame.
(4) The broadcast address cannot be used on a bus with multiple sensors, otherwise multiple modules will respond at the same time and cause the bus communication to fail. It can only be used in the case of one host for one sensor.
