E07 Power Module

Module : DYP-E07

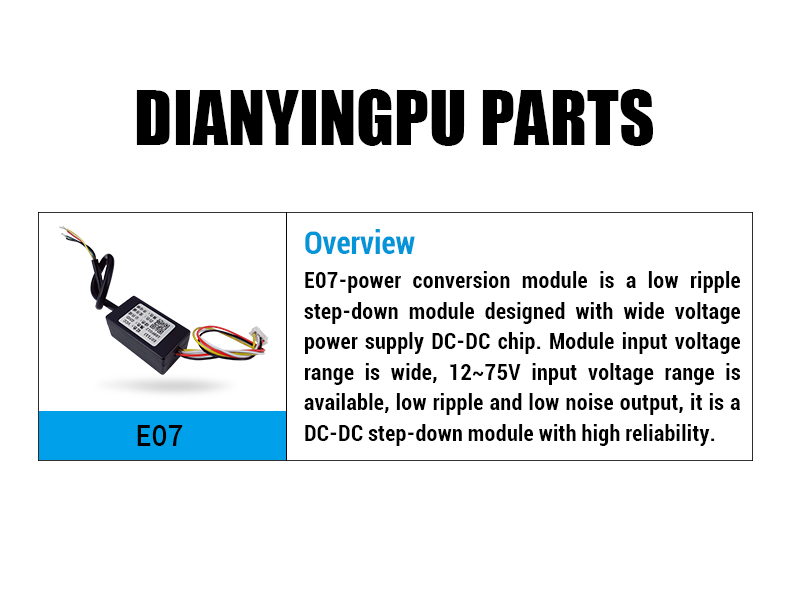

DYP-E07-V1.0 is a low ripple Buck Module designed with a wide voltage power supply DC-DC chip. The module has a wide input voltage range, available in a 12-75V input voltage range, low ripple and low noise output, and is a highly reliable DC-DC buck module.

Here comes the detailed specifications of DYP-E07:

Item	Relay output	Signal direct output	Unit	Remark
Operating voltage	12～75	12～75	V	DC
Output voltage	5	5	V	/
Output current	≤100	≤100	mA	/
Output ripple	≤70	≤70	mV	/
No load current	≤4	≤4	mA	/
Output modes	TTL convert to Relay output	Signal direct output	/	/

Remarks:

The above test data are all measured at room temperature(25℃), and the specific parameters are subject to the actual environment measurement.

The default output voltage is 5V, and 12V output voltage version can also be selected according to requirements. The power supply voltage range of the 12V voltage output version is 15~75V.

Rated Environmental Condition

Item	Minimum value	Typical value	Max value	Unit
Storage Temp	-25	25	75	℃
Storage Humidity	/	65%	90%	RH
Operating Temp	-15	25	60	℃
Operating Humidity	/	65%	80%	RH

Remark:

1.Environment temperature is 0-39℃, max humidity is 90%(Non-condensation);

2.Environment is 40-50℃, max humidity is the highest at current temperature in nature.

Rated Electrical Condition

Item	Minimum value	Typical value	Max value	Unit	Remark
Operating voltage	12	24	75	V
Peak current	/	/	100	mA	Peak value
Input Ripple	/	/	100	mV	Peak value
Input Noise	/	/	100	mV	Peak value

Remarks : The above test data are all measured at room temperature(25℃), and the specific parameters are subject to the actual environment measurement.

Product Features

DYP-E07power conversion module features a wide voltage input range of 12-75V, supporting flexible compatibility with various power sources. It offers selectable output voltages of 5V or 12V, catering to different device requirements. Equipped with an internal TTL to relay output design, the module enables reliable signal switching for control systems. It boasts low no-load power consumption with a no-load current ≤4mA, enhancing energy efficiency in standby modes. The anti-reverse connection design provides input terminal reverse polarity protection, safeguarding the module from installation errors. Operating stably within -15℃ to +65℃ and storing safely at -25℃ to +80℃, it ensures durability across diverse environmental conditions.

This power module is intricately linked to a high-performance dc dc converter module, which works tirelessly to reduce input voltage while maintaining ultra-low ripple. The dc-dc converter module is not only a core part of the power module but also a vital component of the overall converter module system, ensuring that voltage conversion is both efficient and smooth.

As a dedicated converter module, DYP-E07 excels in integrating the power module and dc dc converter module into a cohesive unit. The converter module's primary role is to manage both power and signal conversion, with the dc-dc converter module handling the critical task of voltage regulation within the power module. This synergy means the converter module can leverage the dc-dc converter module's low-ripple performance to enhance the power module's stability, making it ideal for sensitive ultrasonic sensingapplications.

Model Selection

The output format of this series of ranging modules is divided into 2 formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.

No.	Application	Output interface	Model No.
E07series	DC/DC step-down, signal line straight through	Signal pass-through	DYP-E07-V1.0
E07series	DC/DC step-down, relay output	SPDT	DYP-E07J-V1.0

Reliable Testing Condition

No.	Description	Testing condition	Sample QTY
1	High temperature and humidity	65℃,85%RH,Power ON@5V,72hrs	3
2	low temperature	-20℃,Power ON@5V,72hrs	3
3	High temperature and humidity storage	80℃,80%RH,storage,72hrs	3
4	Low temperature storage	-30℃,storage,72hrs	3
5	Vibration test	10-200Hz,15min,2.0G, XYZ three axes,each axis is 0.5 hours	3
6	Drop test	120cm free fall,5 times on wooden floor	3

Note : After the test,the module passes the function test and it is determined to be OK,the performance degradation rate is≤10%.

Notice

1.Please pay attention to the structural tolerances when designing.Unreasonable structural design may cause temporary abnormalities in module functions.

2.Please pay attention to the evaluation of electromagnetic compatibility when designing. Unreasonable system design may cause malfunction of the module.

3.When the boundary application of the product limit parameter is involved,you can contact after sale service dept.to confirm the relevant precautions.
