E09-8in1 Module Converter DYP-E09

DYP-E09 8-in-1 Converter Module is a functional converter module that can control 1 to 8 of our company's specified protocol ranging modules for combined or polling work.

Delivery :

EXW

minimum order :

2 units

Supply Ability :

10000units / Month

Stock Time :

7-10Day

Country of Origin :

Guangdong, China

Quantity :

Contact Now

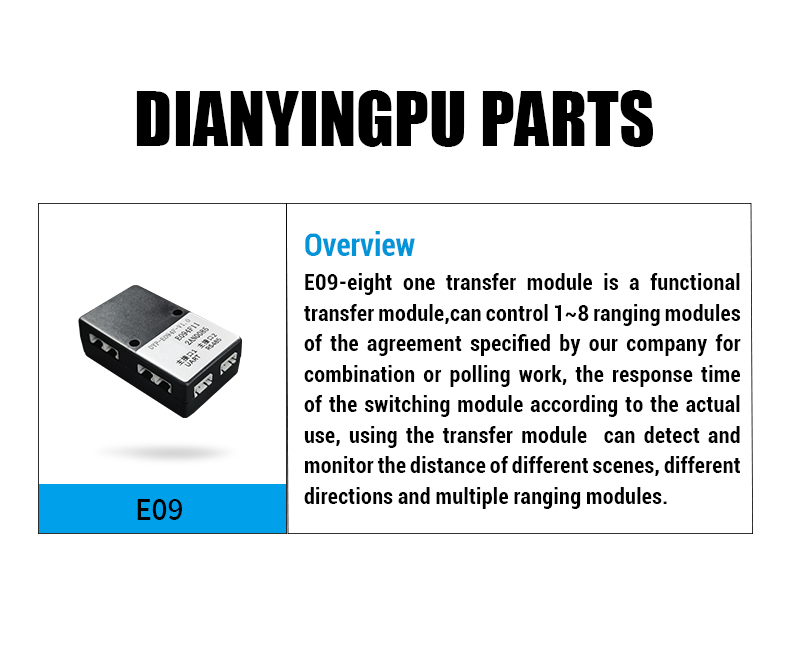

E09-8in1 Module Converter

Module : DYP-E09

The 8-in-1 transfer module is a functional transfer module, which can control 1 to 8 ranging modules according to the protocol specified by our company for combination or polling work. The response time of the transfer module is based on the actual work. Depending on the method, this transfer module can be used to detect and monitor the distances of multiple ranging modules in different scenarios, different directions, and multiple ranging modules.

Here comes the detailed specifications of DYP-E09 :

Parameter item	RS485 output	Unit	Remarks
Operating voltage	5-24	V	DC
Working current	≤130	mA	/
Output method	RS485	-	/

Remarks:

The power supply is 12V, and the data is the data obtained by connecting 4 A02 sensors and 4 A19 sensors to the converter module. At any time, up to 4 sensors work at the same time, not the current value of 8 sensors working at the same time.

Rated Environmental Condition

Project	Minimum	Typical value	Maximum value	Unit
Storage temperature	-25	25	70	℃
Storage humidity	-	65%	90%	RH
Operating temperature	-15	25	60	℃
Working humidity	-	65%	80%	RH

Description:

a. When the ambient temperature is 0-39℃,the maximum humidity is 90% (non-condensing);

b. When the ambient temperature is 40-50℃,the highest humidity is the highest natural humidity(non-condensing) at the current temperature.

Rated Electrical Condition

Parameter Item	Parameter Item			Unit	Remark
Parameter Item	Minimum	Typical value	Maximum value	Unit	Remark
Operating Voltage	11.75	12	12.25	V
Input ripple	-	-	50	mV	peak-to-peak
input noise	-	-	100	mV	peak-to-peak
ESD	-	-	±4K/±8K	V

Note : The probe shell and output lead conform to the IEC61000-4-2 standard;the contact static electricity is ±4KV,and the air static electricity is ±8KV.

Product Features

The DYP-E09 eight-in-one power conversion module features a DC5-24V wide voltage power supply, ensuring compatibility with various power sources. It supports control of 1 to 8 sensors simultaneously, integrating their data for unified output. The module operates stably within the working temperature range of -15℃ to +60℃, guaranteeing reliable performance in diverse environments.

With stable and reliable data output, it ensures accurate sensor data transmission. The electrostatic protection design, with electrostatic protection devices on both input and output interfaces, complies with the IEC61000-4-2 standard, effectively safeguarding the module against electrostatic discharges. This design enhances its durability and reliability in industrial and commercial applications.

Module DYP-E09 mainly used in Robot obstacle avoidance and automatic control.

In summary, the DYP-E09's strength lies in its identity as an EIGHT-IN-ONE CONVERTER MODULE that leverages the converter module's comprehensive conversion capabilities and the adc module's precision in analog-to-digital processing. The EIGHT-IN-ONE CONVERTER MODULE, converter module, and adc module work in unison to deliver a seamless, all-in-one solution, making it an indispensable choice for applications requiring efficient, high-performance conversion in ultrasonic sensing.

Model Selection

The output format of this series of ranging modules is divided into 2 formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.

No.	E09 model number	Interface 1	Interface 2	Remark
1	DYP-E094F-V1.0	UART TTL	RS485	Both interfaces are Modbus protocol output
2	DYP-E09TF-V1.0	UART TTL	RS485	Interface 1 is UART controlled output

Matters Needing Attention

1.Please pay attention to the structural tolerance when designing.Unreasonable structural design may cause temporary abnormality of the transfer module and radar function;

2.Please pay attention to the electromagnetic compatibility assessment when designing, unreasonable system design may cause abnormal function of the transfer module and radar;

3.When the boundary application of product limit parameters is involved,please contact the FAE of our company to confirm the relevant precautions.

Packaging Specification

1.The default is the conventional packaging method of Dianying General;

2.Packaging materials can be customized according to customer IQC related standards;

3.The container transportation method needs to adopt the staggered LCL method, and at the same time, the outer edge of the single stack needs to be wrapped with a reinforced corner board to provide sufficient support.
