L02 Integrated Waterproof Ultrasonic Liquid Level Sensor

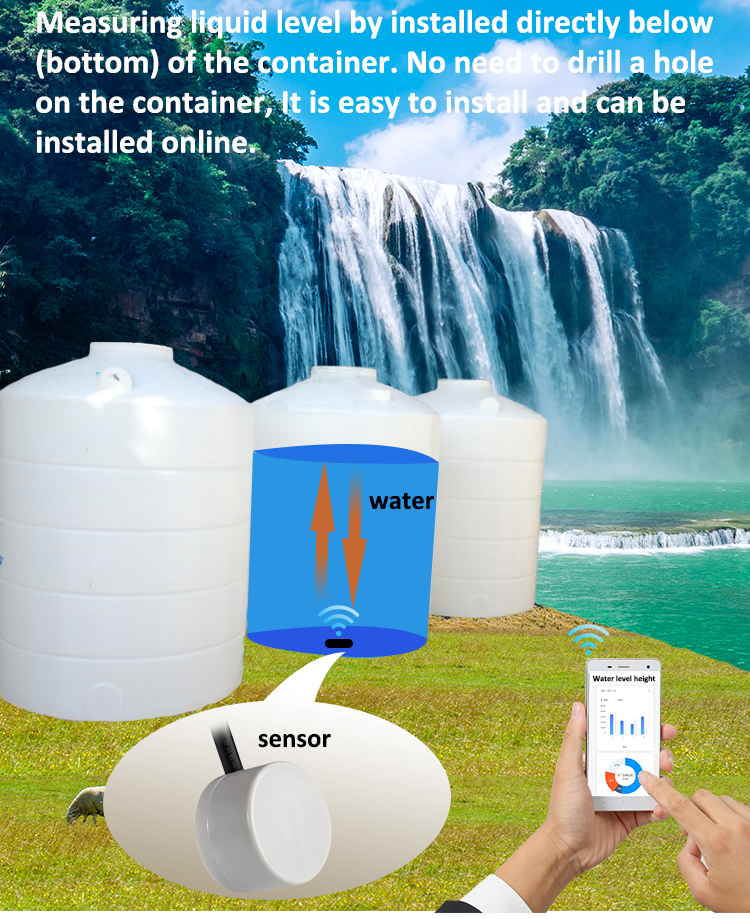

The sensor need to be attached to the bottom center of the container to detect its liquid level height, or attached to the side wall of the container to detect whether there is liquid in the container at the monitoring point.
L02 Integrated Waterproof Ultrasonic Liquid Level Sensor
Module : DYP-L02

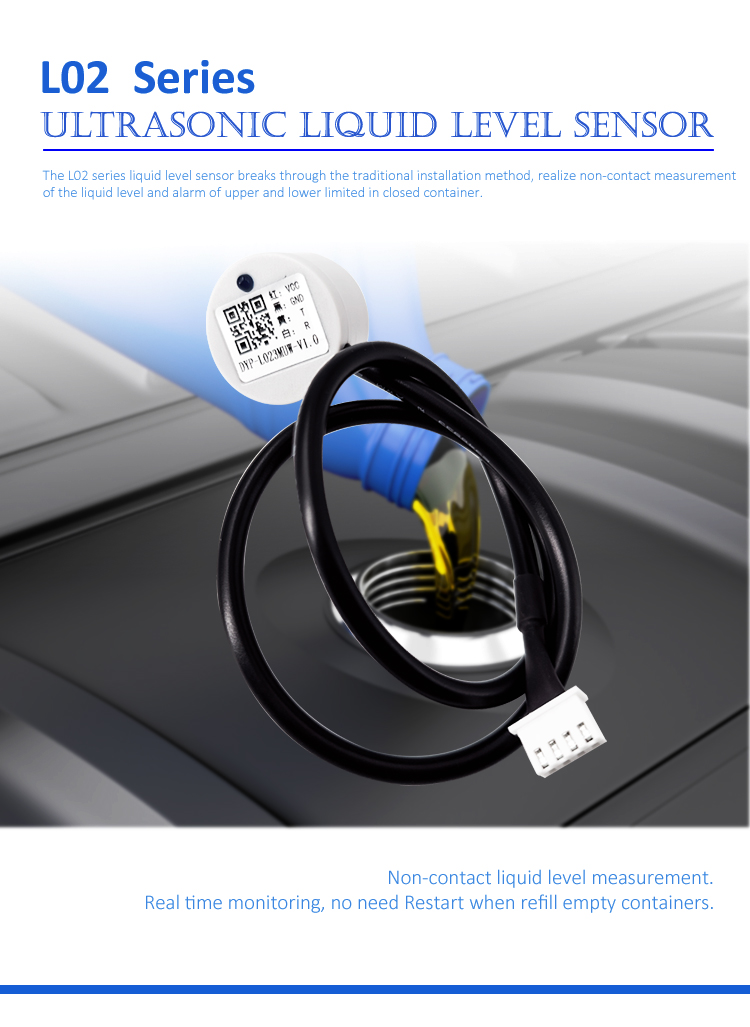

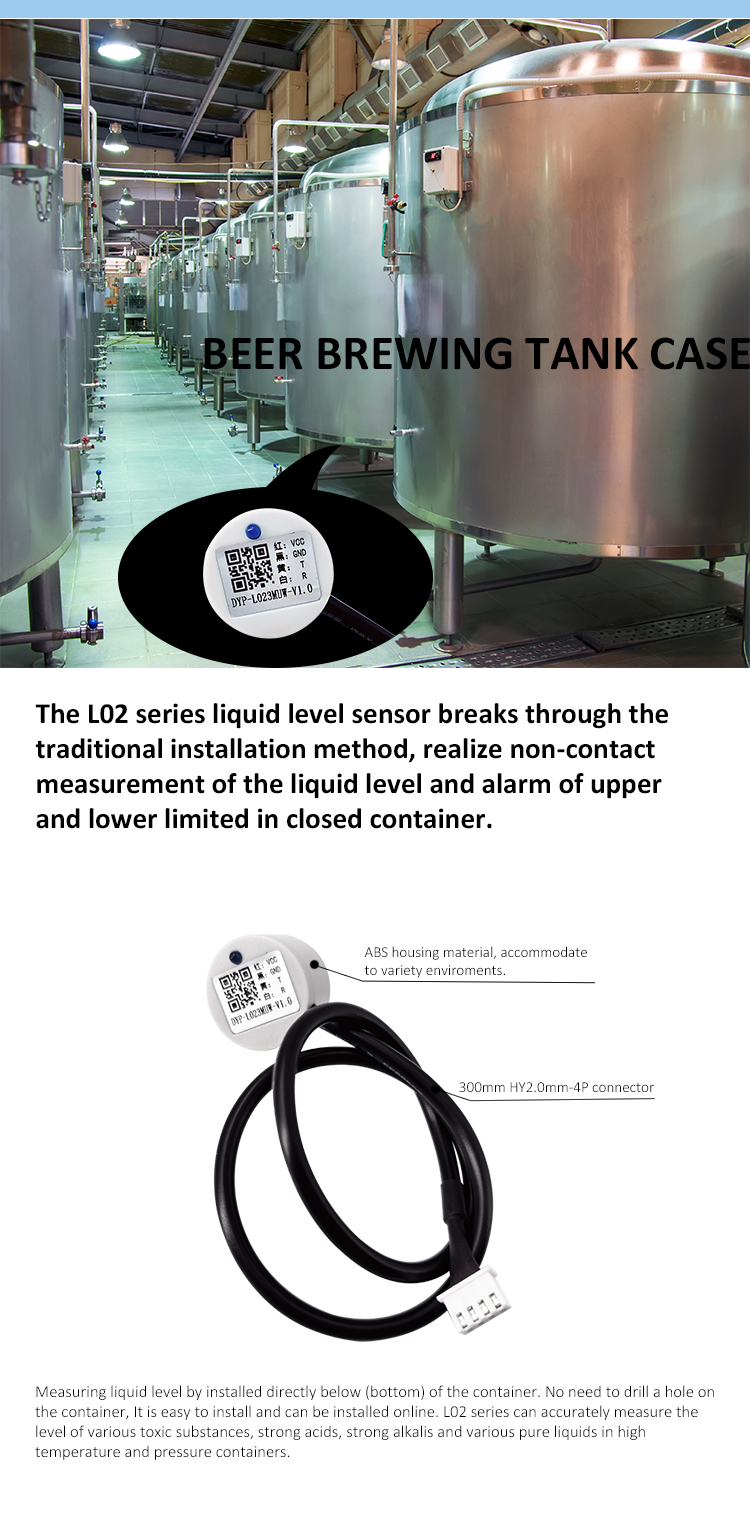

The L02 liquid level sensor breaks through the traditional installation method of open can contact, and realizes the real non-contact measurement of the liquid level height, upper and lower limit alarms in the closed container. The sensor is installed directly below (bottom) of the container to be tested to detect the height of the liquid level. It can be installed on the outer wall of the container to be tested to determine whether there is liquid in the container at the monitoring point. It does not need to open a hole to the container to be tested. The installation is simple and can be realized. Online installation. It can accurately measure the level of various toxic substances, strong acids, strong alkalis and various pure liquids in high temperature and high-pressure airtight containers.
Here comes the detailed specifications of DYP-L02 :
| Parameter | L023MUW | L023MTW | L023MGDW | L023MPNW | Unit | Remarks |
| Operating voltage | 2.8~5 | 2.8~5 | 2.8~5 | 2.8~5 | V | DC |
| Standby current | 1 | 1 | 1 | 1~8000 | uA | - |
| Average current | 2.5~5 | 2.5~5 | 2.5~5 | 2.5~15 | mA | |
| Blink area distance | Adaptive | Adaptive | Adaptive | Adaptive | mm | |
| Detection liquid level height | 20~2000 | 20~2000 | 20~2000 | 20~2000 | mm | |
| Working period | 1 | controlled | 1 | 1 | S | - |
| Output method | UART automatic serial port | UART controlled serial port | TTL switch | PNP/NPN switch | - | - |
| resolution | 1 | 1 | 1 | 1 | mm | - |
| Response time | 1 | 1 | 1 | 1 | S | - |
| Repeated measurement error | ±1 | ±1 | - | - | mm | |
| Room temperature accuracy | ±(5+S*0.5%) | ±(5+S*0.5%) | - | - | mm | |
| Measuring angle | 3~12 | 3~12 | 3~12 | 3~12 | ° |
Remarks:
(1) The lower the power supply, the lower the current. The test current of 2.8V power supply for 1S duty cycle is 2.5mA.

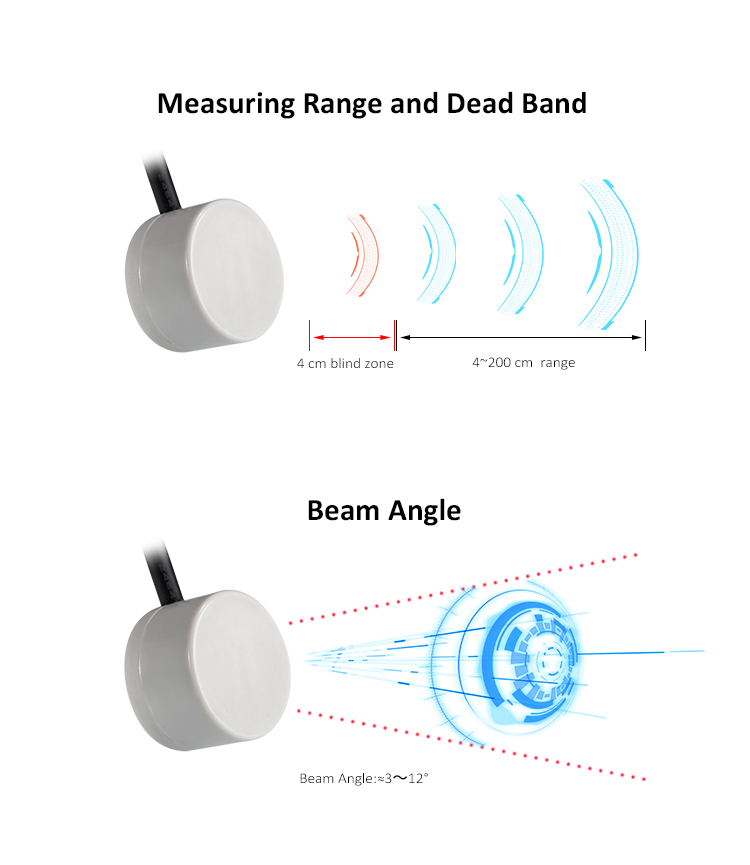

(2) Under normal temperature, the blind zone of 1mm thick plastic container is 15mm, the blind zone of 1mm thick iron plate container is 40mm, and the blind zone of 2mm thickness steel container is 20mm. The size of the blind zone is related to the material and thickness of the container under test.
(3) 2mm thickness steel plate container at room temperature, the container is Φ160mm white PVC pipe test water data.
(4) The material and thickness of different containers will be different. The data obtained from the water test of a 2mm thick steel plate container at room temperature, S represents the current liquid level.
(5) The lower the liquid level, the smaller the measuring angle. 2mm thick steel plate at room temperature, the container is a Φ110mm white PVC pipe, and the liquid level is below 1000mm.

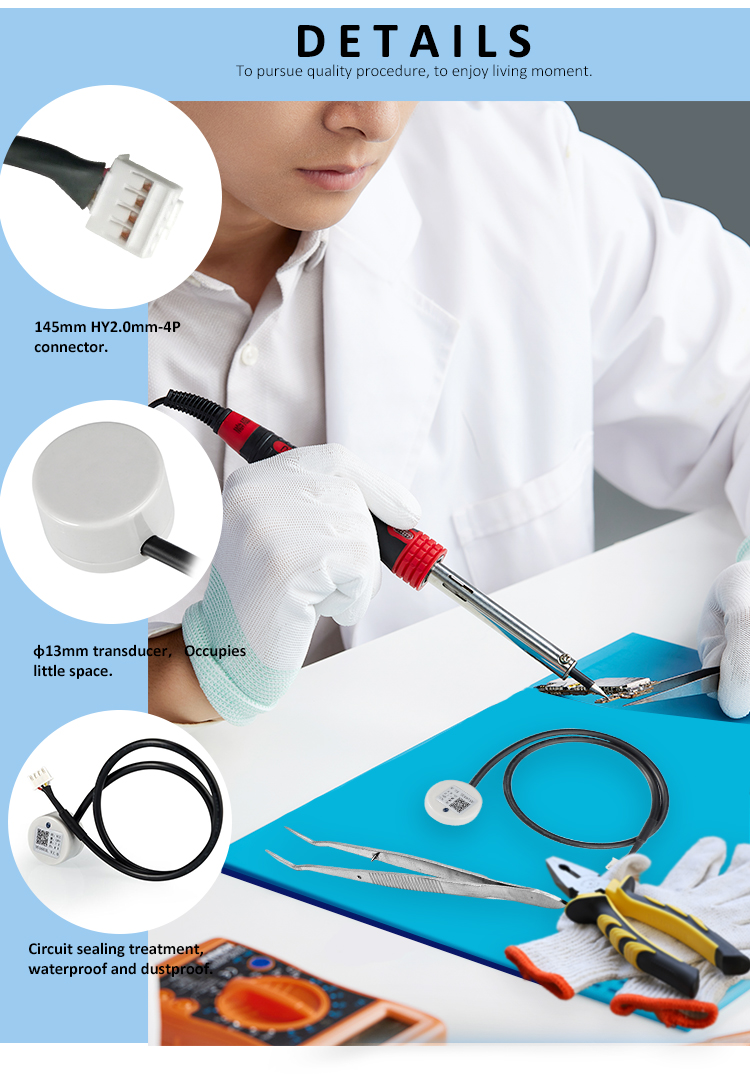

Product Features

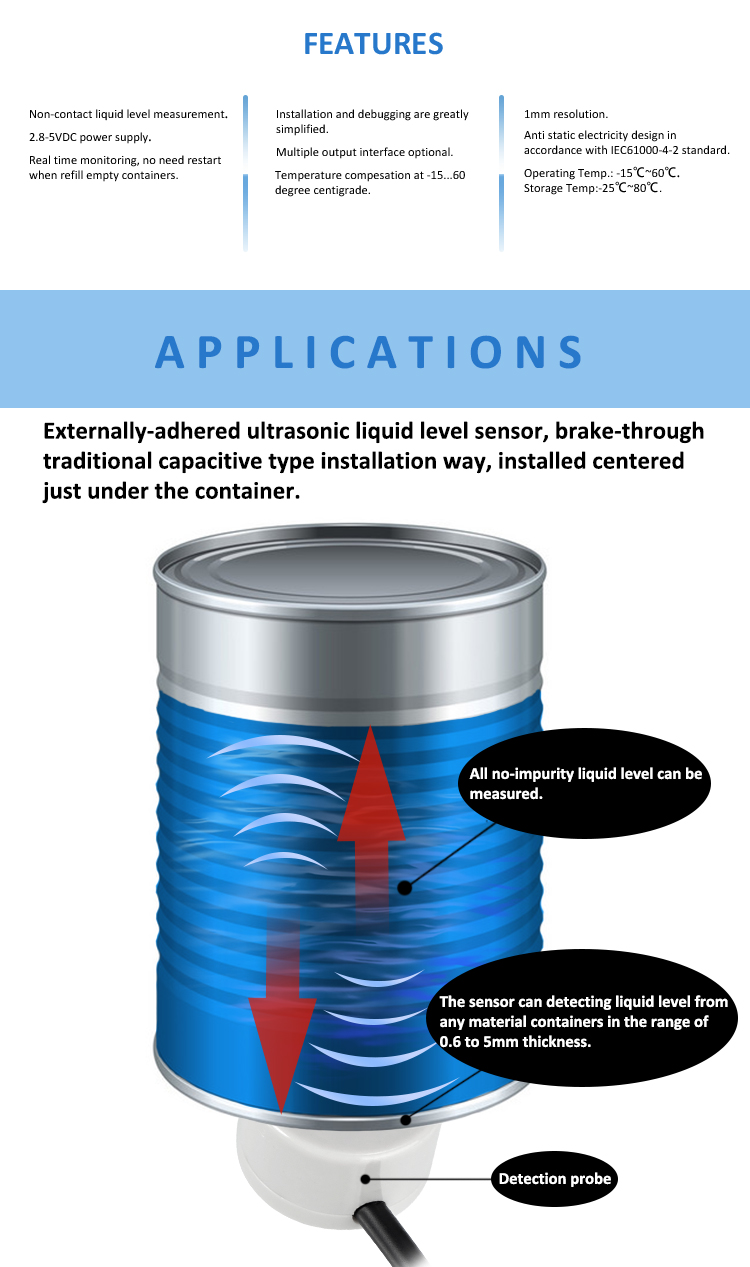

The DYP-L02 ultrasonic sensor excels in non-contact liquid level measurement with inherent safety, eliminating risks from direct liquid contact. It operates within a 2.8V~5V working voltage range, ensuring compatibility with low-power systems, while its full-range real-time tracking feature allows continuous monitoring without restarting when the container is empty, streamlining installation and debugging processes.
Featuring diversified output methods, the sensor adapts to various data transmission needs, while a 1mm measurement resolution guarantees precise readings. It withstands operational temperatures from -15°C to +60°C and storage conditions from -25°C to +80°C, making it suitable for harsh environments. The electrostatic protection design, with anti-static devices on connecting leads, complies with IEC61000-4-2 standards, enhancing durability. Combining safety, low-power efficiency, and robust protection, the DYP-L02 is an ideal solution for non-contact liquid level sensing in industrial and smart monitoring applications.
Scope of Application
(1)Real-time detection of liquid height in containers of dense materials such as steel, iron, glass, ceramics, and non-foamed plastics;
(2)Real-time detection of the level of pure single liquid or miscible mixed liquid without serious deposition;
(3)The shape of the measuring container is relatively regular, and the surface is relatively flat;
(4)Apply to smart water cups, smart beer barrels, smart liquefied petroleum gas and other smart liquid control systems, etc.
Model Selection
The output format of this series of ranging modules is divided into 4 formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.
| Pos. | Connection type | Model |
| L02 series | UART AUTO | DYP-L023MUW-V1.0 |
| UART CONTROLLED | DYP-L023MTW-V1.0 | |
| SWITCH VALUE | DYP-L023MGDW-V1.0 | |
| PNP/NPN | DYP-L023MPNW-V1.0 |
Matters Needing Attention
1. At room temperature, containers of different materials, such as steel, glass, iron, ceramics, non-foamed plastics and other dense materials, have different detection blind areas and detection limit heights.
2. For containers of the same material at room temperature, the detection blind zone and detection limit height are also different for the thickness of the container.
3. When the detected liquid level exceeds the effective detection value of the sensor, and the liquid level of the liquid to be measured shakes or tilts, the detected liqui3. d height value is unstable.
4. Please pay attention to the evaluation of electromagnetic compatibility when designing. Unreasonable system design may cause abnormal sensor function.
5. When it comes to the boundary application of product limit parameters, you can contact our FAE to confirm relevant precautions.
