2cm Blind Zone IP67 High Precision Ultrasonic Sensor
Module : DYP-A22

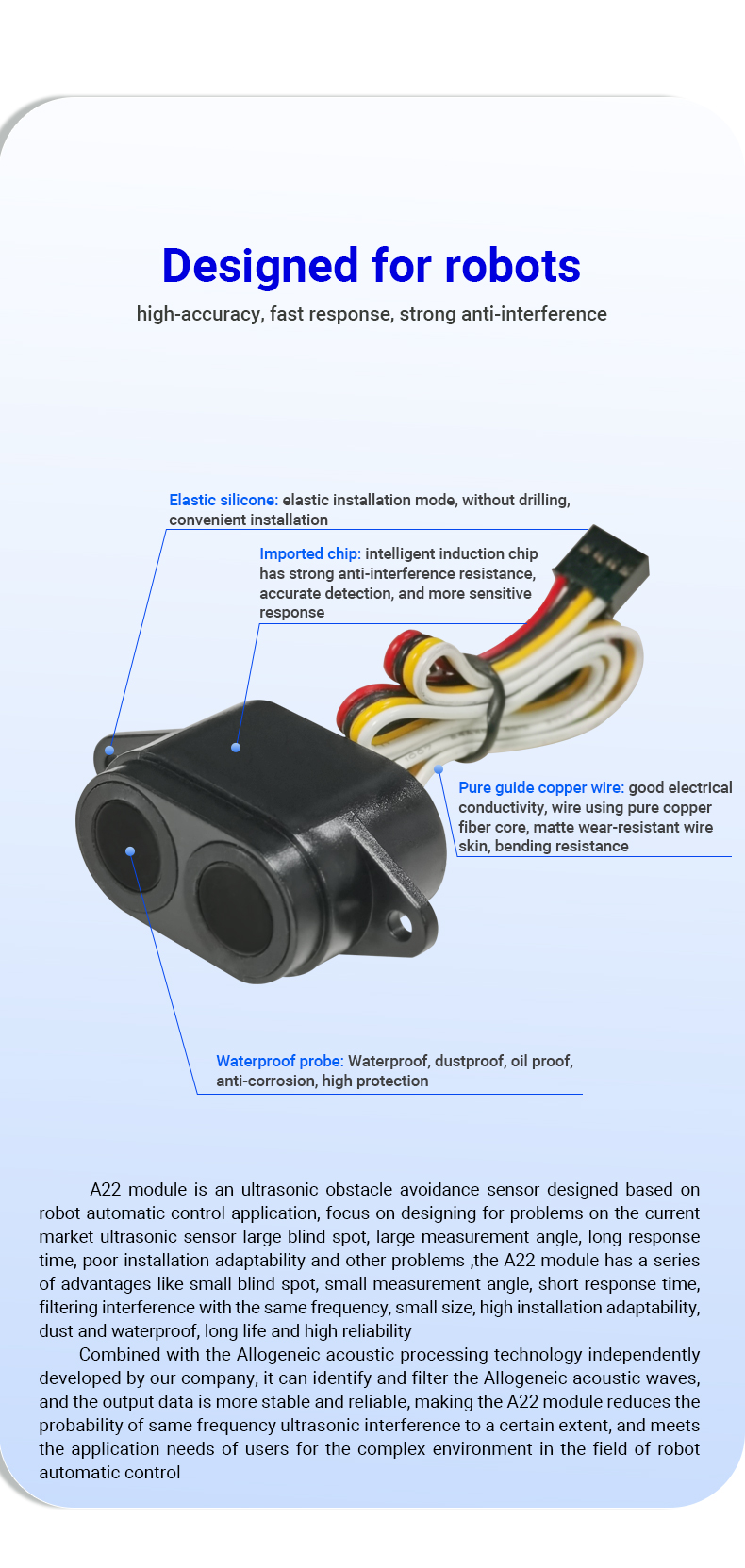

The A22 module is an ultrasonic obstacle avoidance sensor designed based on robot automatic control application, focus on designing for problems on the current market ultrasonic sensor module large blind spot, large measurement angle, long response time, poor installation adaptability and other problem.
Here comes the detailed specifications of DYP-A22 :
Parameters | UART Auto | UART Controlled | PWM Pulse Width | Switch Volume | RS485 | IIC | Unit | Remarks |
Working Voltage | 3.3~12 | 3.3~12 | 3.3~12 | 3.3~12 | 3.3~12 | 3.3~12 | V | DC |
Standby Current | - | ≤5 | ≤5 | - | - | - | uA | |
Average Working Current | ≤9 | ≤9 | ≤9 | ≤9 | ≤10 | ≤10 | mA | |
Blind Area Distance | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | cm | |
Flat Object Range | 2~300 | 2~300 | 2~300 | 2~300 | 2~300 | 2~300 | cm | |
Output Response Time | 8~140 | 8~140 | ＜15 | 300~1500 | 14~750 | 8~140 | ms | |
Power Working Hours | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ms | |
Working Period | 100~180 | Controlled | Controlled | 100~180 | Controlled | Controlled | ms | |
Output Method | Auto | Controlled | Controlled | Auto | Controlled | Controlled | - | |
Measurement Accuracy at Room Temperature | 1+（S*0.3%) | 1+（S*0.3%) | 1+（S*0.3%) | 1+（S*0.3%) | 1+（S*0.3%) | 1+（S*0.3%) | cm | |
Temperature Compensation | Compensate | Compensate | Compensate | Compensate | Compensate | Compensate | - | |
Single Angle | 30~60 | 30~60 | 30~60 | 30~60 | 30~60 | 30~60 | ° | |
Remarks:
(1)The module exceeds 5S does not receive the control instruction will enter a low power consumption dormant state,when the power consumption current is the standby power consumption current;
(2)Typical data obtained by testing with temperature 25°℃,humidity 65%RH,power supply 12V,and 100ms working cycle;
(3)The temperature is 25℃,the humidity is 65%RH,the measured object is a 50cm×60cm flat carton,and the transducer should be as vertical as possible.S represents the measurement distance;
(4)The output response time is 0.5~3m range test,the shorter the range,the faster the response time.
(5)Test data for single-angle modules,The measured object is the reference data obtained from the test of φ 75mm×100cm white PVC pipe with a distance of 100cm.
Product Features
The A22 module has a series of advantages like small blind spot,small measurement angle,short response time,filtering co-frequency interference,high installation adaptability,dust and waterproof, long life and high reliability.

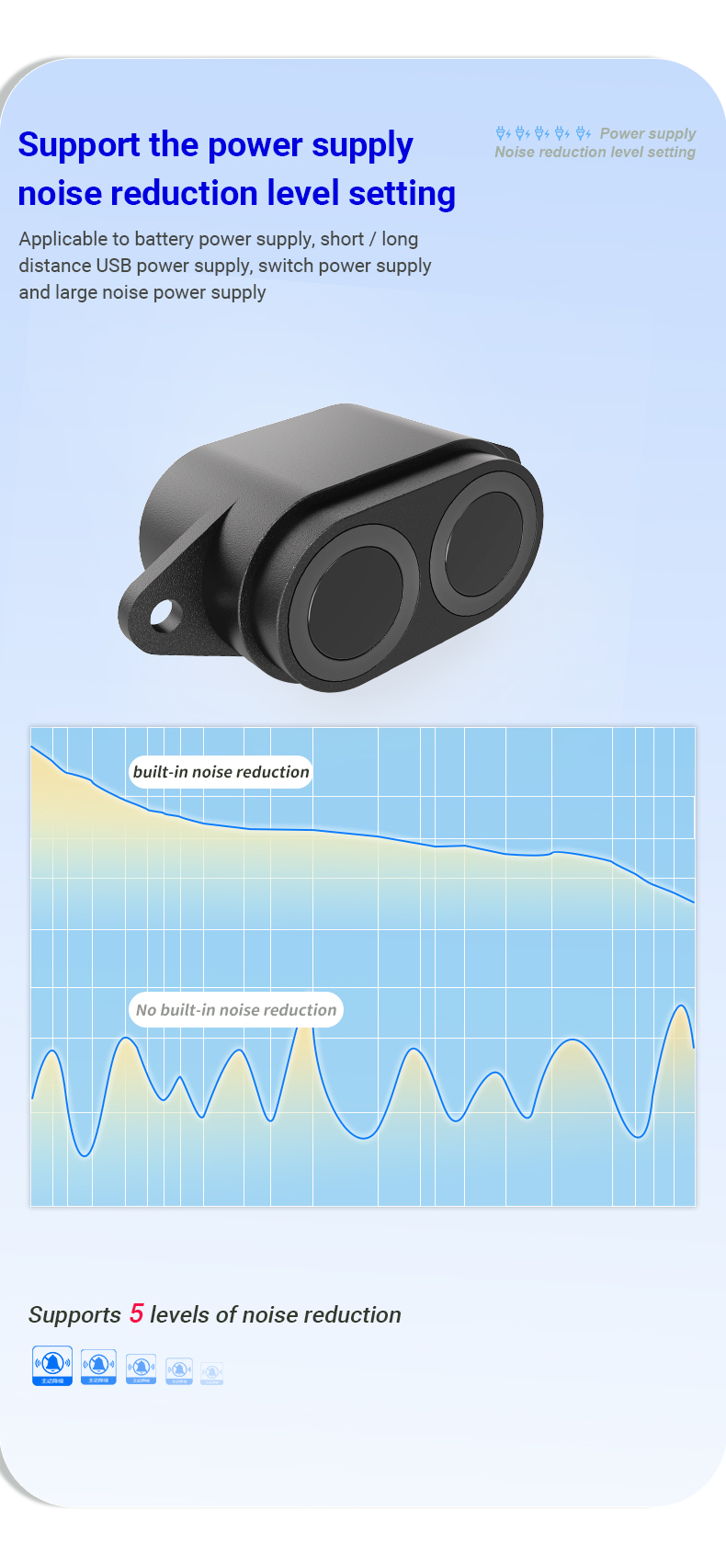

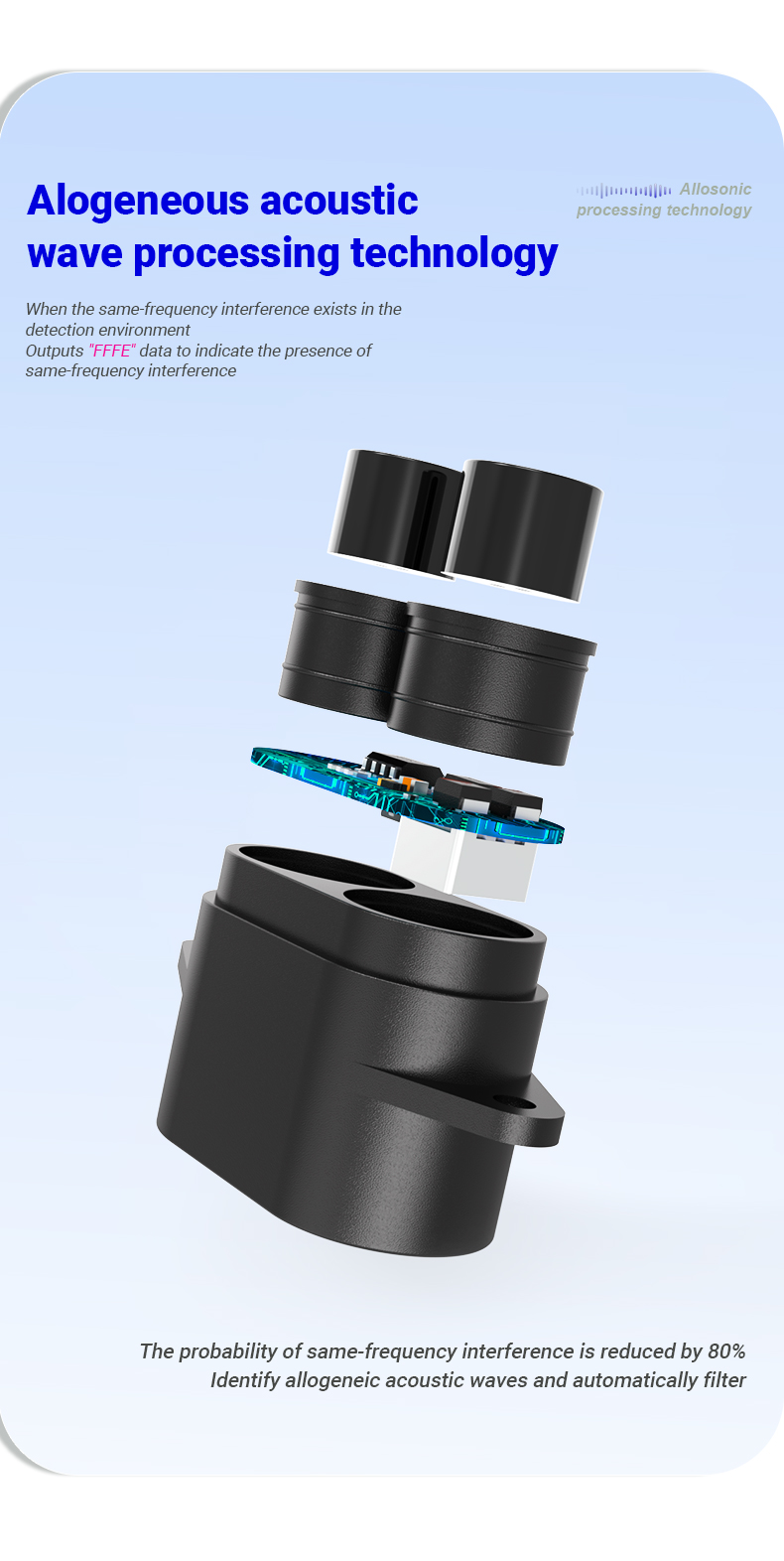

The intelligent acoustic processing technology independently developed by our company can identify and filter the interference acoustic wave,and output data more stable and reliable,making the A22 module reduce the probability of co-frequency ultrasonic interference to a certain degree,and meet the users' application needs for the complex environment in the filed of robot automatic control.
The DYP-A22 ultrasonic sensor is a high-performance device tailored for robotic applications, especially excelling as a core component in the obstacle avoider. As a key part of the obstacle avoid robot, it provides precise distance data to ensure the robot navigates smoothly without collisions. This sensor is also highly compatible with the obstacle avoidance car, offering reliable detection to keep the car on track.
When integrated into the obstacle avoiding robot with Arduino, the DYP-A22 showcases its exceptional capabilities. The obstacle sensing robot relies heavily on this sensor to detect nearby objects, and the DYP-A22 delivers accurate distance measurements to support timely decision-making. For the obstacle avoider, the sensor's rapid response ensures that the robot can adjust its path promptly when an obstacle is detected.
The obstacle avoid robot benefits from the DYP-A22's consistent performance, as it can continuously monitor the surrounding environment and provide real-time data. In the obstacle avoidance car, this sensor's wide detection range allows the car to anticipate obstacles from a distance, enabling smooth maneuvering. The obstacle avoiding robot with Arduino, when paired with this sensor, becomes more efficient in navigating complex terrains.
Moreover, the DYP-A22 enhances the functionality of the obstacle sensing robot by offering stable and precise readings even in varying conditions. For the obstacle avoider, its durability ensures long-term reliable operation, reducing the need for frequent maintenance. The obstacle avoid robot, equipped with this sensor, can handle different obstacles with ease, thanks to the sensor's high sensitivity.
In the obstacle avoidance car, the DYP-A22's quick data transmission ensures that the car's control system receives information in time to initiate avoidance actions. The obstacle avoiding robot with Arduino leverages this sensor's compatibility to achieve seamless integration, making the robot more responsive. The obstacle sensing robot, with the DYP-A22, can accurately identify the size and distance of obstacles, allowing for optimal avoidance strategies.
Overall, the DYP-A22 ultrasonic sensor is an indispensable component for the obstacle avoider, a vital part of the obstacle avoid robot, a key element in the obstacle avoidance car, a perfect match for the obstacle avoiding robot with Arduino, and a reliable tool for the obstacle sensing robot, enhancing their performance and functionality significantly.
The output format of this series of ranging modules is divided into six formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.
No. | Feature | Output method | A22 Series Model |
| 1 | Single angle | UART AUTO | DYP-A22YYUW-V1.0 |
| 2 | UART CONTROLLED | DYP-A22YYTW-V1.0 |
| 3 | PWM PULSE WIDTH | DYP-A22YYMW-V1.0 |
| 4 | SWITCH | DYP-A22YYGDW-V1.0 |
| 5 | IIC | DYP-A22YYCW-V1.0 |
| 6 | RS485 | DYP-A22YY4W-V1.0 |
Installation Suggestions
1.When installing the sensor,ensure that the transmitting surface of the transducer is parallel to the measured plane, so as to ensure that the sound waves emitted vertically to the surface of the measured object return with maximum energy to ensure maximum range stability and reliability;
2.In front of the sensor,it should be noted that except for the measured object,other objects should avoid the sensor testing range;
3.There is steam at the site of use and installation,and water droplets are easy to adhere to the surface of the probe, so try to avoid the influence of water droplets;
4.The installation and fixation of the sensor needs to avoid structural deformation, metal or other resonance, and avoid resistance components such as elbows, valves, variable diameters;
5.The installation height of the ground or obstacle objects and the module is recommended. The actual module installation height can refer to the above effective detection range reference diagram, and select the appropriate installation height according to the range of different angle requirements.
