Model No: DYP-A02

DYP-A02 3cm Blind Zone IP67 High Precision Ultrasonic Range Sensor

The A02-module is based on the use of a closed split waterproof probe. IP67 suitable for harsh environments.
The 3cm small blind area is suitable for different detection conditions. It is a simple operation high-performance, high-reliability commercial-grade functional module.

Delivery :

EXW

minimum order :

10 units

Supply Ability :

10000units / Month

Stock Time :

7-10Day

Country of Origin :

Guangdong, China

Quantity :

Contact Now

3cm Blind Zone IP67 High Precision Ultrasonic Range Sensor

Module : DYP-A02

Module ultrasonic range sensor DYP-A02 is a high-performance ranging waterproof ultrasonic sensor designed with a closed split waterproof probe. It has a certain level of dust and water resistance, suitable for wet and harsh measurement occasions. The 3cm small blind zone is suitable for different detection conditions. The ultrasonic sensor module is a simple operation high-performance, high-reliability commercial-grade functional module.

Here comes the detailed specifications of DYP-A02 :

Parameters	PWM Pulse Width	UART Controlled	UART Auto	Switch Volume	Unit
Working Voltage	3.3~5	3.3~5	3.3~5	3.3~5	V
Standby Current	≤5	≤5	-	-	uA
Average Working Current	≤8	≤8	≤8	≤8	mA
Blind Area Distance	3	≤2	≤2	≤2	cm
Flat Object Range	3~450	3~450	3~450	3~450	cm
Peak to Peak Current	≤40	≤40	≤40	≤40	mA
Reference Angel	≈60	≈60	≈60	≈60	°
Working Period	Controlled	Controlled	100	100	ms
Output Method	PWM Pulse width	UART serial port	UART serial port	Switch	-
Measurement Accuracy at Room Temperature	1+（S*0.5%)	1+（S*0.3%)	1+（S*0.3%)	1+（S*0.3%)	cm
Temperature Compensation	NO Compensate	Compensate	Compensate	Compensate	-

Remarks:

(1) Typical data obtained by testing with temperature 25°C, humidity 65% RH, power supply 5V, and 100ms working cycle;

(2) The temperature is 25°C, the humidity is 65% RH, the measured object is a 50cm×60cm flat carton, and the transducer should be as vertical as possible. S represents the measurement distance;

(3) The measured object is the reference data obtained from the test of φ75mm×100cm white PVC pipe with a distance of 100cm.

Product Features

Ultrasonic ranging module DYP-A02 has a series of advantages like small blind spot, IP67 protection, strong anti-interference, low power consumption, fast response time, high accuracy and so on.

Ultrasonic Range Sensor DYP-A02 boast remarkable advantages, starting with a small blind spot that enables precise near-field detection, ensuring no detail is missed in close-range measurements. Its strong anti-interference capability effectively minimizes external signal disruption, guaranteeing stable and reliable data output even in complex environments. With low power consumption, it operates energy-efficiently, making it suitable for long-term use in various devices. The fast response time allows for real-time detection, crucial for applications requiring immediate feedback.

Moreover, its strong antistatic performance safeguards against electrostatic damage, enhancing durability and reliability. Featuring a wide working temperature range, it adapts seamlessly to diverse environmental conditions, while high measurement accuracy ensures precise distance and size monitoring.

As a premium waterproof ultrasonic sensor, it is designed to resist water ingress, making it suitable for various humid or wet environments.

The ultrasonic sensor range of the DYP-A02 is carefully calibrated to meet different usage requirements, providing flexibility in various scenarios.

Moreover, this ultrasonic ranging module is easy to install and integrate into different systems, thanks to its compact design. Its reliable ultrasonic distance measurement capability, along with the well-optimized ultrasonic sensor range, further enhances its practicality.

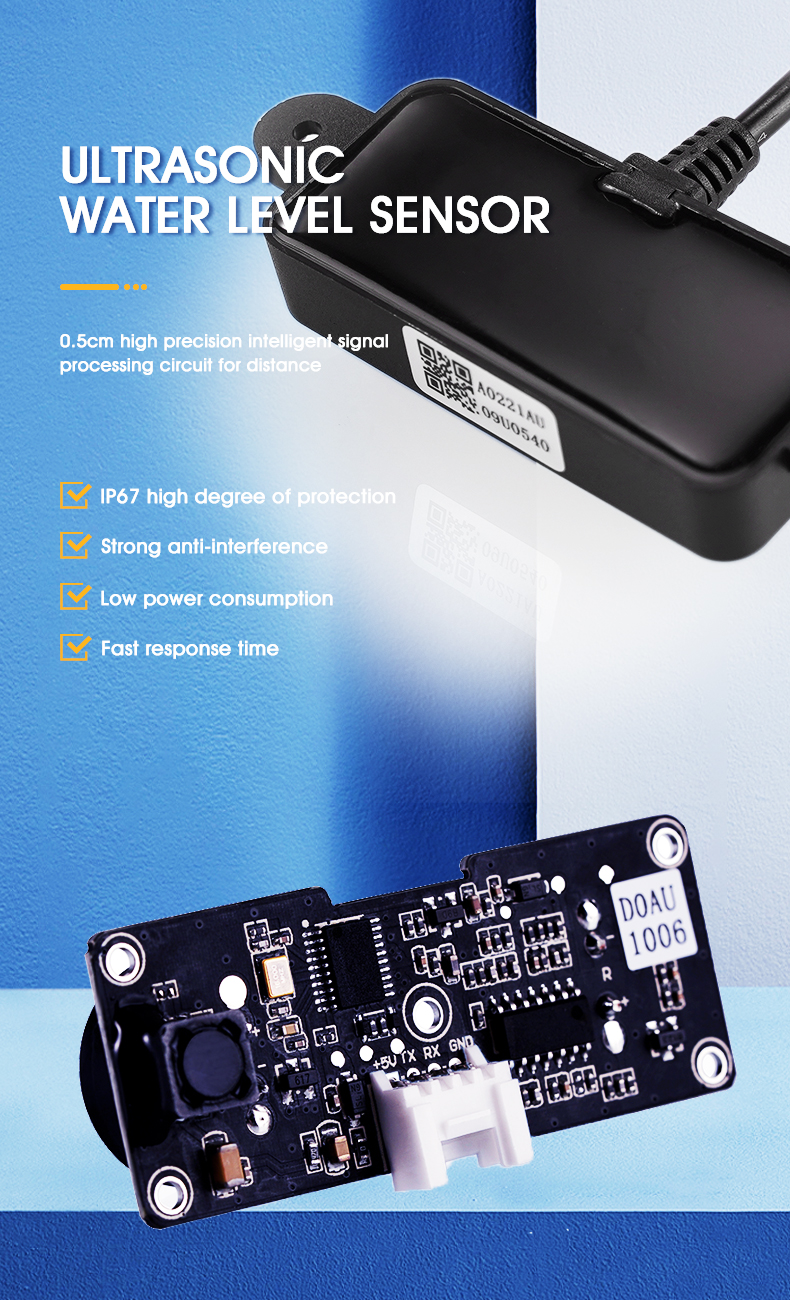

Module A02 has a series of advantages like IP67 protection, strong anti-interference, low power consumption, fast response time, high accuracy.

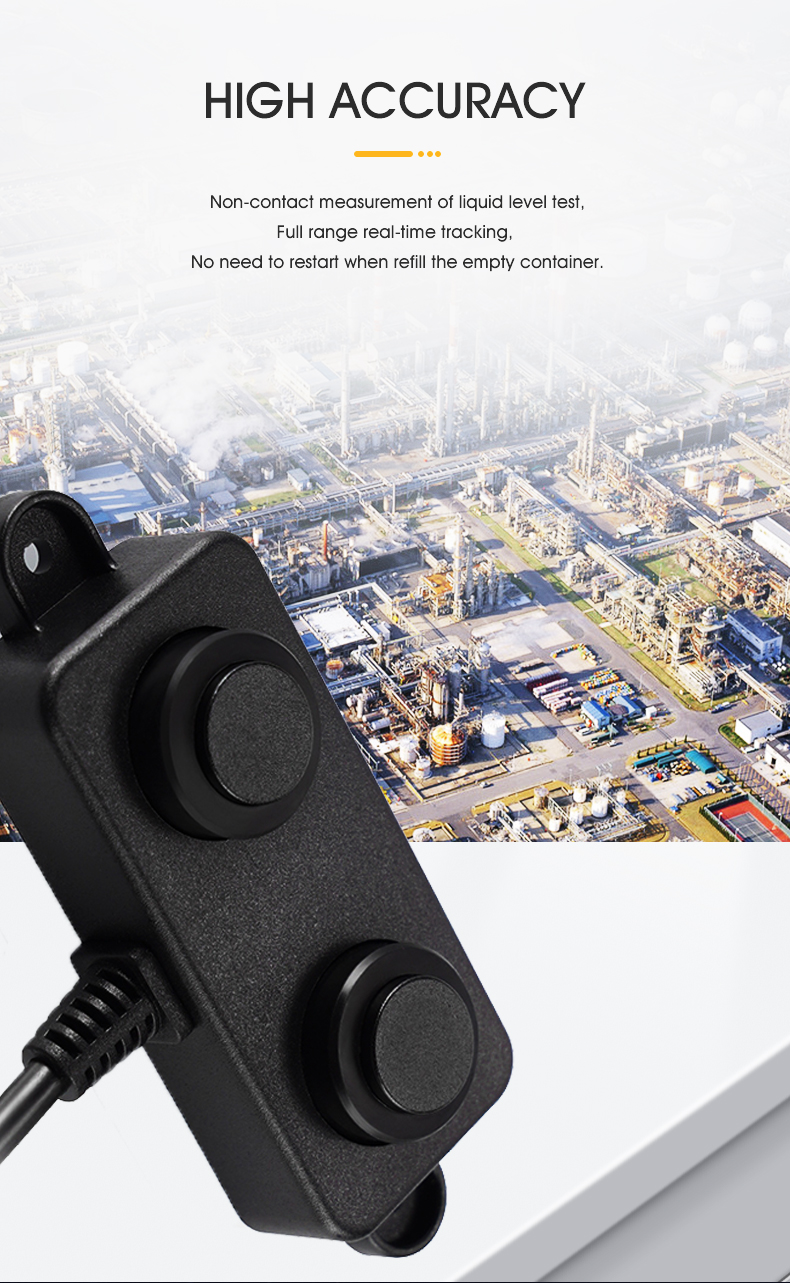

it adapts seamlessly to diverse environmental conditions, while high measurement accuracy ensures precise distance and size monitoring

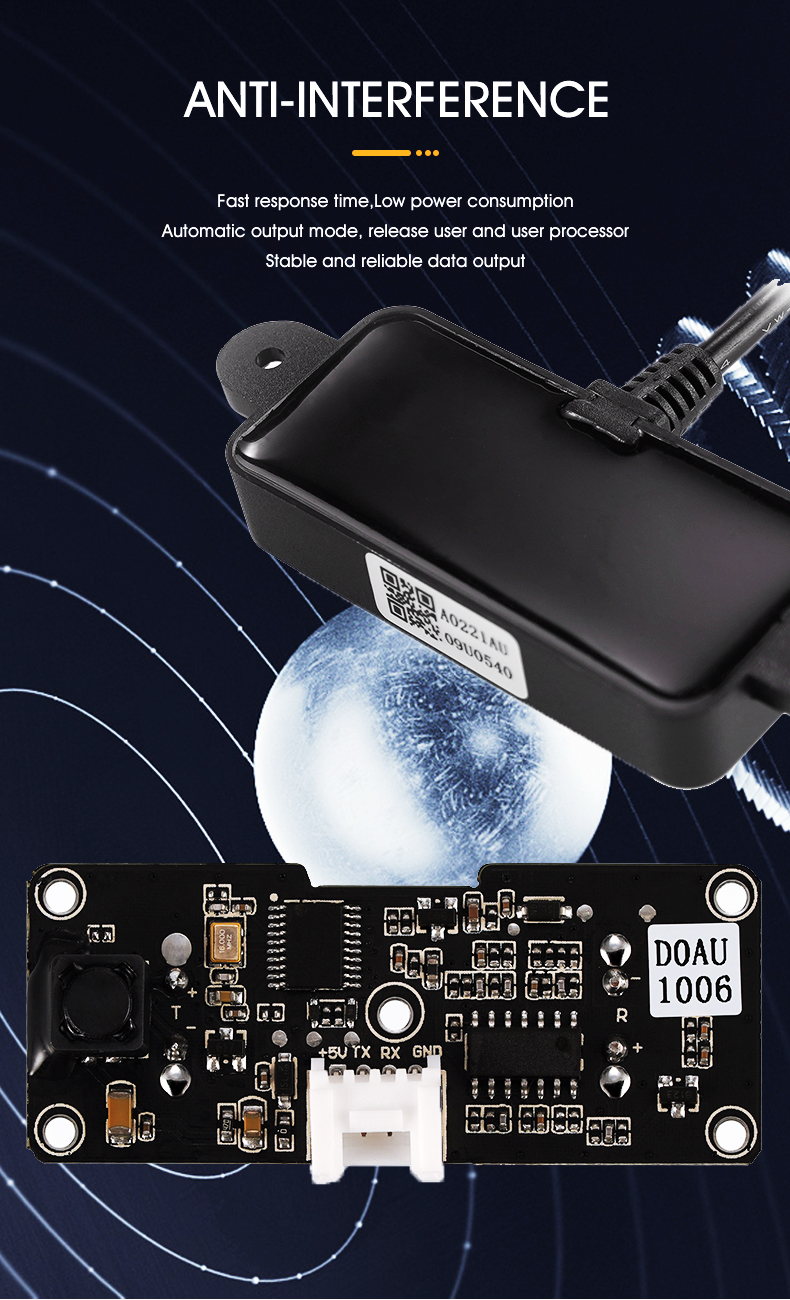

Its strong anti-interference capability effectively minimizes external signal disruption, guaranteeing stable and reliable data output even in complex environments.

Scope of Application

Module DYP-A22 mainly used in Robot avoidance, automatic control, Horizontal ranging, Parking management system, Object proximity and presence awareness.

Module DYP-A22 mainly used in automatic control and Horizontal ranging

Also used in Object proximity and presence awareness

Model Selection

The output formats of this series of ranging modules are divided into four types and eight types with or without waterproof housing. Users can choose the corresponding model according to the actual application. If there are special requirements to modify the angle, communication protocol, etc., please communicate with our company when purchasing.

No.	Main Spec.	Output interface	Model No.
1	Split waterproof probe, no shell	UART AUTO	DYP-A02YYU-V2.0
2		UART CONTROLLED	DYP-A02YYT-V2.0
3		PWM PULSE WIDTH	DYP-A02YYM-V2.0
4		SWITCH	DYP-A02YYGD-V2.0
5	Split waterproof probe and housing	UART AUTO	DYP-A02YYUW-V2.0
6		UART CONTROLLED	DYP-A02YYTW-V2.0
7		PWM PULSE WIDTH	DYP-A02YYMW-V2.0
8		SWITCH	DYP-A02YYGDW-V2.0
9		RS485	DYP-A02YY4W-V2.0

Matters Needing Attention

1. Please pay attention to the structural tolerances when designing. Unreasonable structural design may cause transient abnormalities in module functions;

2. Please pay attention to the evaluation of electromagnetic compatibility when designing. Unreasonable system design may cause abnormal module function;

3. When the boundary application of the product limit parameter is involved, you can contact our FAE to confirm the relevant precautions.
