Model No: DYP-S02

NB-Iot Smart Garbage Bin Overflow Detector

NB-Iot Smart Garbage Bin Overflow Detector is a product designed with ultrasonic technology and integrated with the IoT automatic control module.
The product is mainly used to detect the overflow of trash bin and automatically report to the network server, which is convenient for managing trash bins everywhere and reducing labors cost, to achieve the purpose of energy saving and environmental protection.

Delivery :

EXW

minimum order :

2 units

Supply Ability :

10000units / Month

Stock Time :

7-10Day

Country of Origin :

Guangdong, China

Quantity :

Contact Now

NB-Iot Smart Garbage Bin Overflow Detector

Module : DYP-S02

The S02 garbage bin overflow detector is a product designed based on ultrasonic technology, combined with IOT automatic control application, and is by default matched with our special ultrasonic module for bin detection, DYP-A13-V1.0.

The product is mainly for bin overflow detection and automatic network reporting, which facilitates the management of bins at various locations and helps the bins to be cleaned up in time, reducing labour costs and improving the efficiency of sanitation management.

The product's network intelligence, lightweight layout and installation features, as well as its high adaptability, dust and water resistance, long life and reliability, make it not limited to bin detection,but can be used in a variety of sensor and IOT application

scenarios, such as wireless level detection and underwater well level detection.

Here comes the detailed specifications of DYP-S02 :

Parameter Item	Specification Value	Unit	Remarks
Operating Voltage	2.9~3.7	V	DC
Average Operating Current	At sensor detection : ≤15 When NB-lot data is reported : ≤110	mA	/
Standby Current	≤10	uA
Battery Capacity	13000	mAh	3.6V disposable lithium sub batteries
Battery Life	5	Year	Based on 2 reports per day and relatively good signal conditions
Sensor Interface	UART	-	RS485 optional
Plane Range	25 to 200	cm	Support DYP-A13-V1.0 module parameters, sis the distance to the measured object
Measuring Accuracy	±(1+0.3%*S)	cm
Distance Resolution	1	mm
Measuring Angle	φ7.5×100cm white PVC@100cm:20	°
Inclination Detection Range	0～180	°	/
Wireless Network Standard	NB-lot, CAT-M1	-	Default NB-lot
Network Protocol	TCP/UDP/Http Push/CoAP/MQTT	-	Support for custom protocol development
Positioning Function	GPS/Galileo	-	Optional GLONASS/BDS/QZSS
Main Body Size	LWH:1006850	mm	/

Rated Environmental Condition

Projects	Minimum Value	Typical Values	Maximum Value	Unit
Storage Temperature	-30	25	80	℃
Storage Humidity	/	65%	90%	RH
Operating Temperature	-20	25	70	℃
Working Humidity	/	65%	80%	RH

Remarks :

a. Maximum humidity value of 90%at ambient temperature of 0-39℃(no condensation);

b. When the ambient temperature is 40-50℃, the maximum humidity is the highest natural humidity at the current temperature(no condensation).

Rated Electrical Condition

Parameter items	Specification			Unit	Remarks
Parameter items	Minimum value	Typical value	Maximum value	Unit	Remarks
Operating voltage	2.9	3.6	3.8	V	/
Peak current	/	/	200	mA	/
Input Ripple	/	/	50	mV	Peak-to-peak value
Input noise	/	/	100	mV	Peak-to-peak value
ESD	/	/	±4K/±8K	V	/

Note : Connection leads and pins conform to IEC61000-4-2 standard.

Product Features

DYP-S02 ultrasonic waste sensor and IOT applications features a detection range of 25 to 200 cm, leveraging special ultrasonic sensors for waste bins to ensure high precision, reliability, and anti-interference capability. It supports tilt detection within 0~180°, and adopts NB-IoT (optional CAT-M1) network standard, compatible with most operators in Europe and North America. A multifunctional waterproof button enables easy operation, while an LED indicator clearly shows the working status. Equipped with a built-in 13000mAH high-capacity battery, it offers a 5-year battery life under normal use. The separate design of the main unit and sensor facilitates installation, and its IP67 waterproof construction ensures operation in temperatures ranging from -20 to +70℃.

As a high-precision NB-Iot Smart Garbage Bin Overflow Detector, it excels in accurately detecting the fill status of various waste containers.

At its core, DYP-S02 leverage ultrasonic technology to measure the distance between the sensor and the waste surface. This measurement directly translates to fill level data, a critical feature for sensor rubbish bin performance. Whether monitoring small indoor bins or large outdoor waste containers, this waste bin fill level sensor delivers consistent accuracy, ensuring that Container fill level measuring system operators receive precise insights into when emptying is required.

What sets DYP-S02 apart as a waste bin fill level sensor is its ability to adapt to varying container types and sizes. As a bin fill level sensor, it can be calibrated to account for different bin shapes—from cylindrical trash cans to rectangular dumpsters—ensuring accurate readings regardless of the container's design.

In summary, module DYP-S02 ultrasonic smart waste sensor has accuracy, adaptability, and reliability make it an indispensable tool for modern waste management, ensuring that fill level data drives efficient, sustainable, and cost-effective operations.

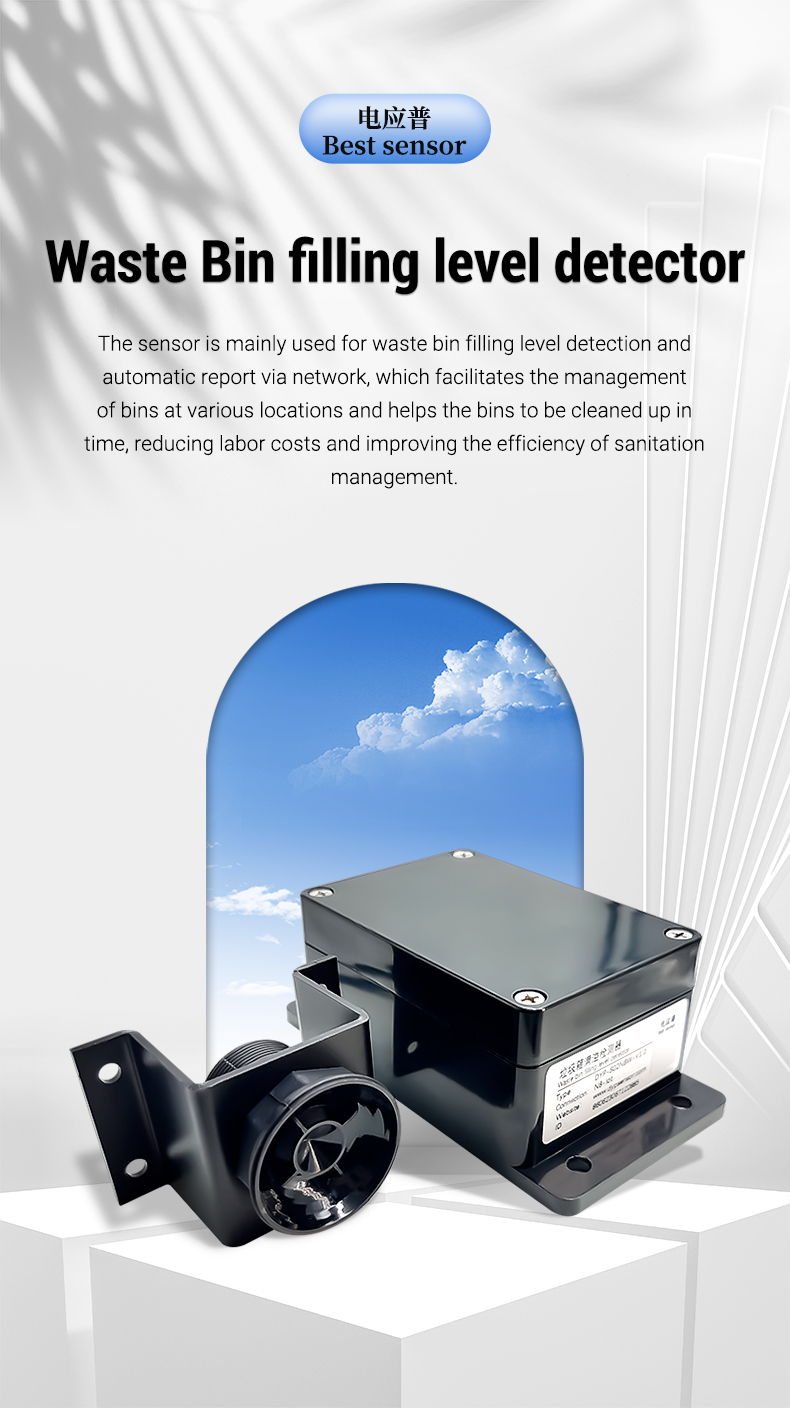

Module S02 is used in waste bin filling level detector

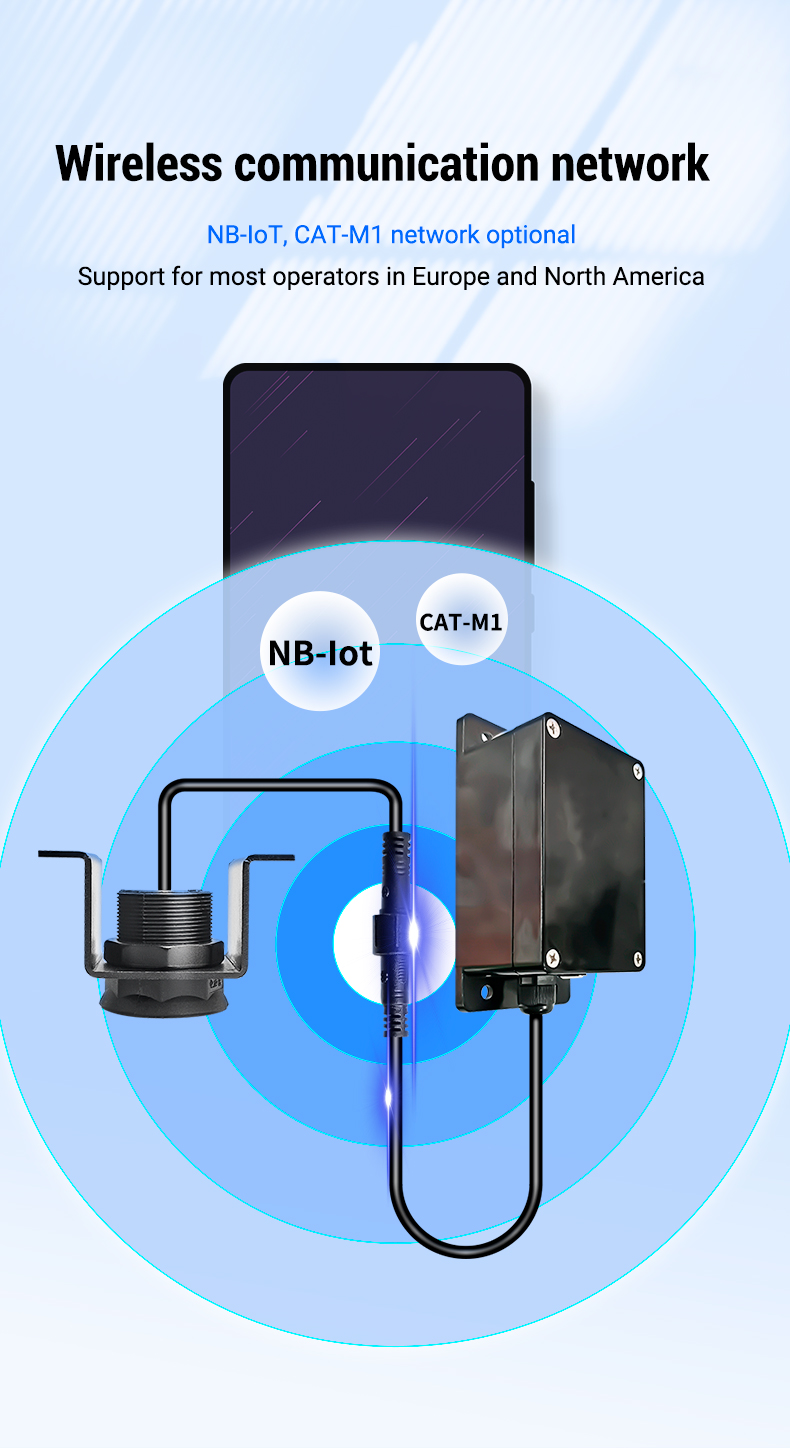

S02 can be used in wireless communication network

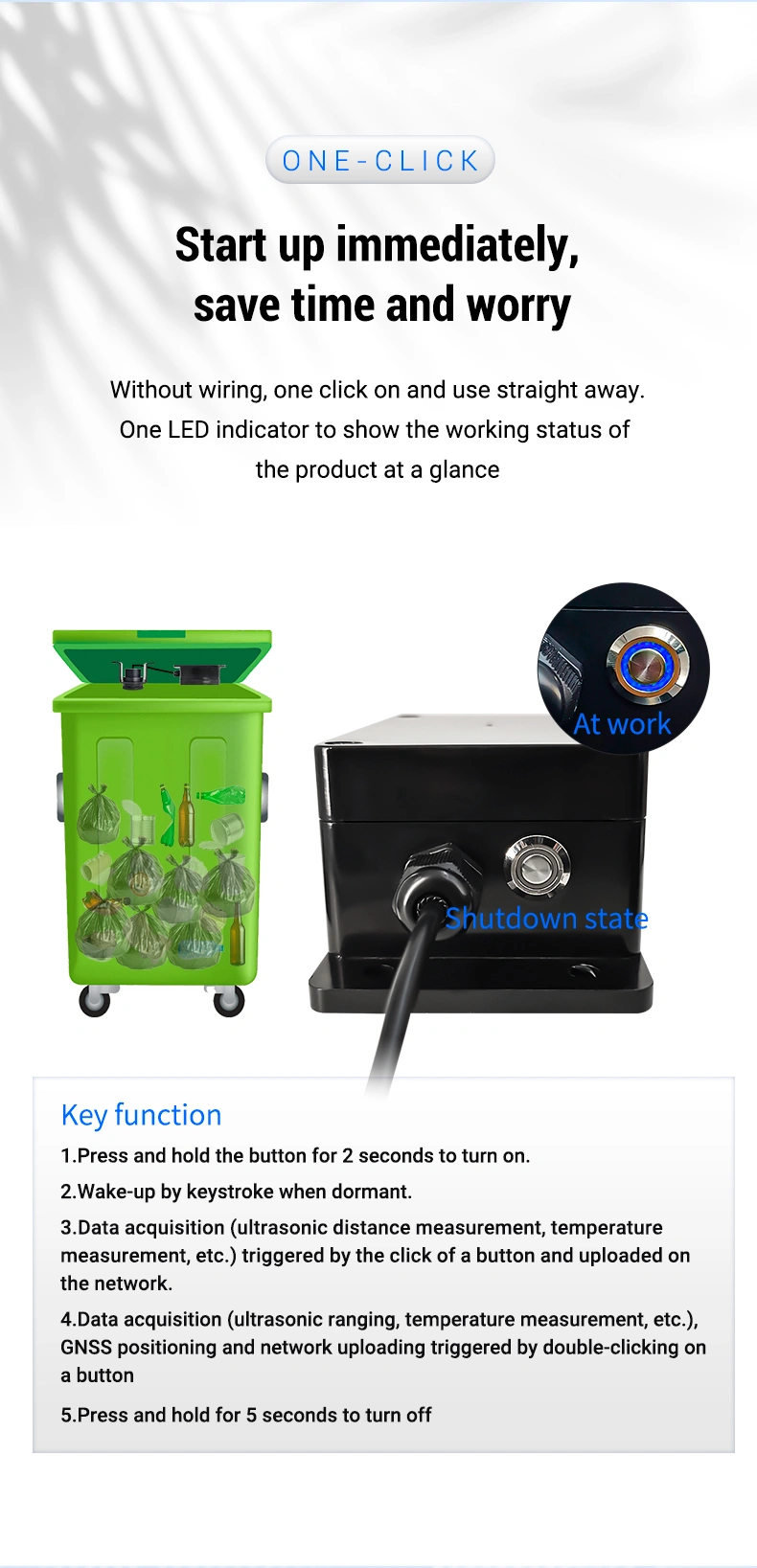

S02 also has many functions, like start up immediately, save time and worry and so on

Scope of Application

Module DYP-S02 mainly used in Overflow detection for all types of bins and refuse chambers, wireless level detection, sensor detection (range,displacement,vibration,inclination attitude) and IOT application and so on.

Model Selection

The output format of this series of ranging modules is divided into two formats. If there are special requirements that need to modify the response time, angle, communication agreement etc., you need to communicate with our FAE engineers during purchasing.

S/N	S02 Series	Feature	Output method
1	DYP-S02NBW-V1.0	waterproof housing	NB-Iot
2	DYP-S02M1W-V1.0	waterproof housing	CAT-M1

Points to Note

1. Please pay attention to structural tolerances when designing, as unreasonable structural design may cause transient abnormalities in the function of the equipment.

2. Please pay attention to electromagnetic compatibility assessment when designing, as unreasonable system design may cause abnormal equipment function.

3. For the application of product limit parameters, please contact our FAE to confirm the relevant precautions.
